Precision Embedded Copper Tube Aluminum Cold Plate Machining

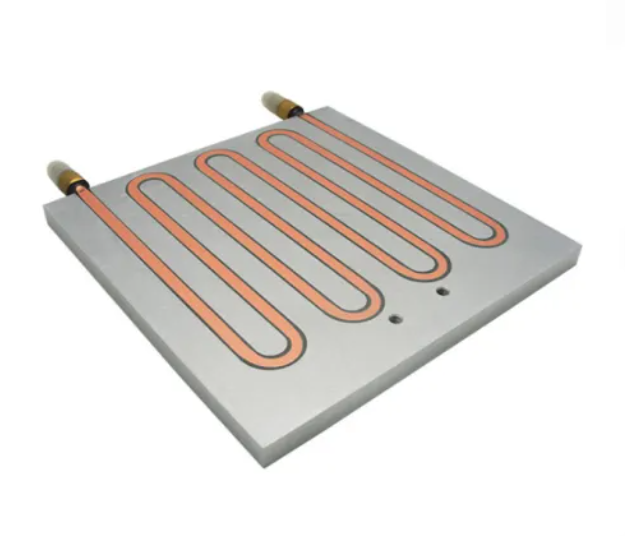

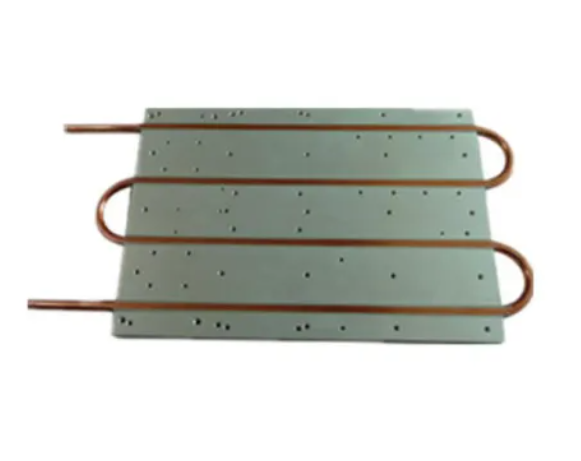

Embedded copper tube aluminum cold plate machining is an advanced hybrid thermal solution that combines the superior thermal conductivity of copper with the lightweight properties of aluminum. At our precision engineering hubs in Bac Ninh, Vietnam, the fabrication process involves milling grooves into aluminum profiles, followed by embedding copper tubes for liquid circulation using hydraulic pressing or specialized thermal epoxy. VINACNC's workflow ensures perfect contact between the copper tube and the aluminum plate, allowing heat from power electronic components like IGBTs, CPUs, or LEDs to be instantly transferred and dissipated, maintaining maximum system stability.

Embedded Tube Cold Plate Fabrication Expertise at VINACNC

The coordination between two different metal materials requires sophisticated machining techniques to achieve peak thermal performance:

Tube-in-Plate Technology: Copper tubes are bent to match pre-milled groove profiles and pressed into the aluminum plate. Calculating micron-level groove tolerances is vital to ensure maximum thermal contact area between the tube and the aluminum, eliminating insulating air pockets.
Thermal Contact Surface Treatment: After embedding the tube, the heatsink surface is CNC re-milled to achieve ultra-fine surface roughness and absolute flatness. This ensures that thermal paste or thermal pads are distributed as thinly as possible, optimizing heat transfer rates.
Premium Materials: Utilizing 6061 or 6063 aluminum combined with pure red copper tubes. This combination provides cooling efficiency comparable to solid copper but at a lower cost and significantly reduced weight for the equipment.
Leak Testing: All copper tube systems undergo rigorous pressure testing before and after embedding to ensure no coolant leaks into electronic components throughout the product's lifespan.

Professional Export Packaging and Preservation Process

Embedded copper tube cold plates require absolute protection of surface flatness and the cleanliness of connectors. VINACNC implements a rigorous international standard packaging process:

Ultrasonic Cleaning: Thoroughly removes aluminum chips, machining oils, and impurities from the gaps between the copper tube and aluminum using industrial ultrasonic systems.
Oxidation and Contamination Protection: Each cooling plate is wrapped in protective PE film and placed in specialized VCI anti-rust paper to prevent salt-air humidity impacts during transit from Vietnam.
Multi-layer Cushioning: Products are placed in shaped foam trays or thick bubble wrap to eliminate mechanical vibration and impact that could deform the precision contact surface or dent the copper tubes.
International Standard Crating: Components are packed in fumigated wooden crates (ISPM 15 standard) or high-grammage reinforced cartons with secure strapping.
Traceability Labeling: Clear labeling displaying part codes, specifications, and barcodes for efficient destination logistics control.
