VINACNC - Expert in High-Precision CNC Machining of Graphite Assembly Tools for TO Packages

In the semiconductor and electronics industries, the assembly of sensitive components like TO Packages requires extremely high precision and heat resistance to ensure the quality of the final product. VINACNC is proud to offer a specialized custom graphite assembly tool manufacturing service, meticulously CNC machined to meet the most stringent requirements of the TO Package assembly process.

Technical Specifications, Materials, and Applications

• Material: The products are crafted from high-purity graphite. This material stands out for its exceptional heat resistance, chemical corrosion resistance, and non-reactive nature with other materials, which helps maintain the integrity of the components during the assembly process.

• Technical Properties:

  • Heat Resistance: Graphite can withstand temperatures of over 3000°C, making it ideal for high-temperature processes such as soldering, sintering, or heat treatment.

  • High Precision: The assembly tools are CNC machined to achieve precise tolerances, ensuring that the components are perfectly positioned and held securely throughout the assembly process.

  • Thermal Conductivity: Graphite has excellent thermal conductivity, which helps to dissipate heat efficiently during assembly, protecting sensitive components from overheating.

• Applications: Graphite assembly tools are widely used for:

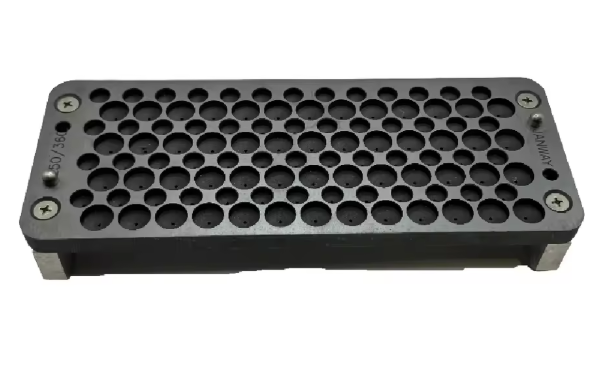

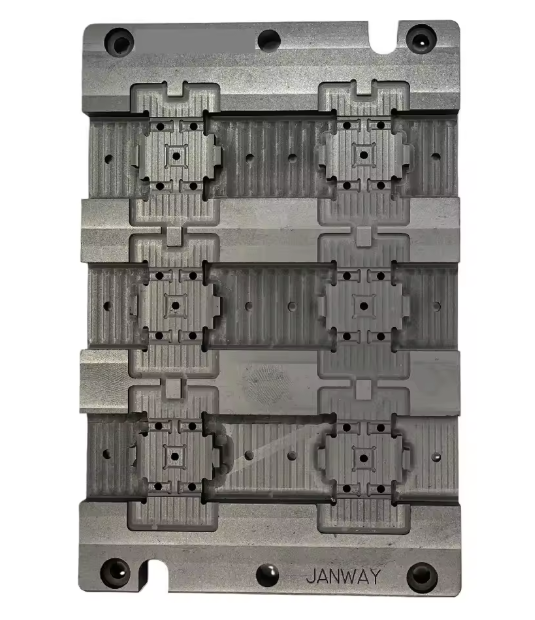

  • TO Package Assembly: Positioning and holding TO Package semiconductors during thermal processes like soldering and encapsulation.

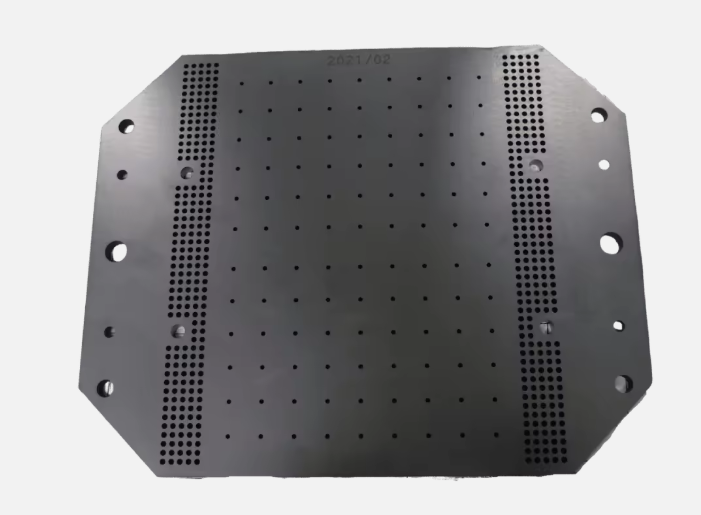

  • Power Semiconductor Manufacturing: Used in sintering furnaces, vacuum furnaces, and other high-temperature production equipment.

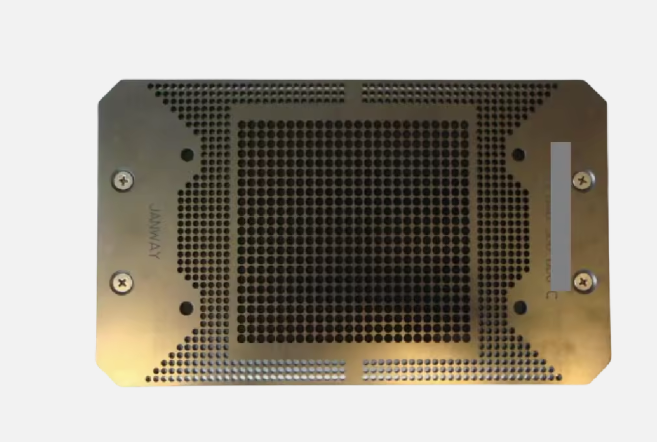

  • Electronic Component Assembly: Used as jigs for the precise assembly of electronic components.

Product Advantages

• High Precision: Thanks to CNC machining, our tools have absolute dimensional accuracy, facilitating high-precision mass production.

• Heat and Corrosion Resistance: The extremely high heat and corrosion resistance of graphite ensures a long tool lifespan and allows for multiple reuses.

• Chemical Inertness: Graphite is an inert material that does not react with other materials, ensuring the quality and purity of the final product.

• Optimized Costs: The long lifespan and high production efficiency of our jigs help minimize investment and operational costs for our clients.

Post-Machining Product Inspection Process

1. Dimensional Inspection: We use digital calipers and other precision measuring tools to verify the dimensions of the graphite assembly tool against the technical drawings.

2. Surface Finish Inspection: We conduct visual inspections and use specialized measuring devices to ensure the surface meets the requirements and is free of cracks or defects.

3. Functional Test: A trial run is performed by fitting the components to be assembled onto the tool to ensure perfect positioning and secure holding.

Packaging and Storage Process

• Cleaning: The tool is thoroughly cleaned to remove carbon dust and other impurities.

• Careful Packaging: The product is packed in a sturdy cardboard box or a wooden crate with foam to prevent impact and chipping during transport.

• Labeling and Instructions: The packaging is clearly labeled with product information, including the product code, dimensions, and usage/storage instructions.

• Storage: We recommend storing the tool in a dry, cool environment, away from heavy impacts, to maintain its best quality.
