VINACNC - Expert in High-Precision Custom CNC Machining of Graphite Plates

In modern manufacturing, especially in fields requiring high heat resistance and electrical/thermal conductivity like electronics, semiconductors, and metallurgy, a graphite plate is an indispensable material. VINACNC is proud to offer a custom CNC machining service for graphite plates, designed to meet all of our clients' most stringent requirements.

Technical Specifications, Materials, and Applications

• Material: The products are crafted from high-purity graphite. This material stands out for its exceptional heat resistance, chemical corrosion resistance, and non-reactive nature with other materials, which helps maintain the integrity of the product during the machining process.

• Technical Properties:

  • Heat Resistance: Graphite can withstand temperatures of over 3000°C in a vacuum or inert gas environment, making it ideal for high-temperature processes such as welding, sintering, or heat treatment.

  • High Precision: The graphite plates are CNC machined to achieve precise tolerances, ensuring that the components have perfect shapes and dimensions.

  • Electrical & Thermal Conductivity: Graphite has excellent electrical and thermal conductivity, making it suitable for electrodes or heat dissipation components.

• Applications: CNC machined graphite plates are widely used for:

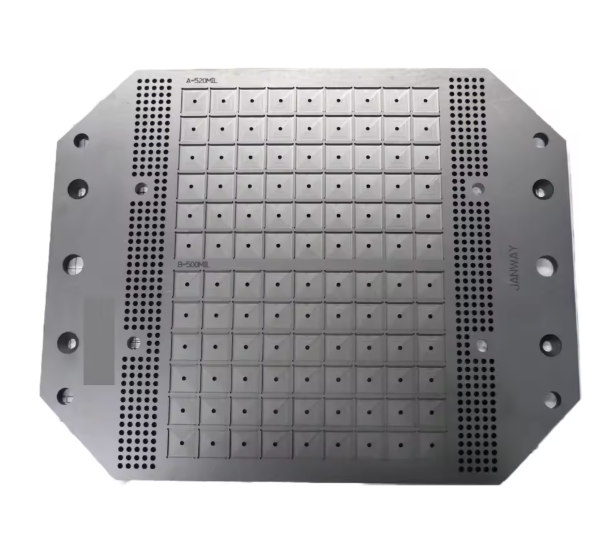

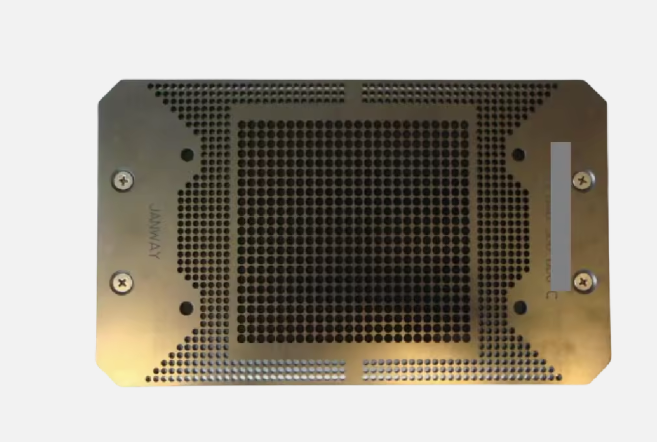

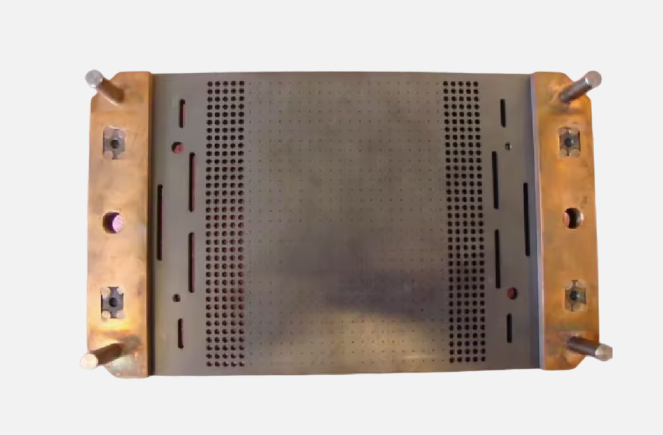

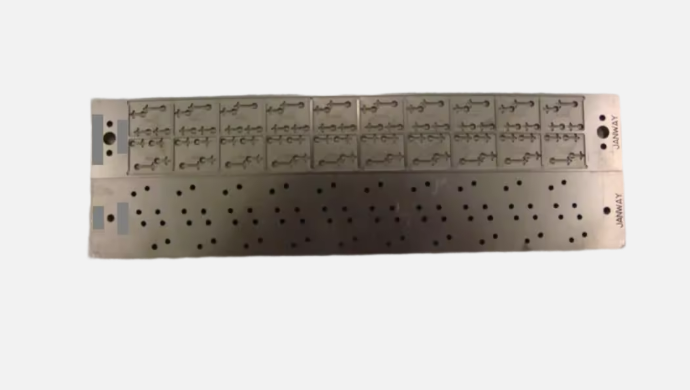

  • Jigs and fixtures: Positioning and holding electronic and semiconductor components during welding, sintering, or heat treatment.

  • Electrodes: Used as electrodes in Electrical Discharge Machining (EDM).

  • Casting Molds: Used as casting molds for metals or glass.

  • Heat Sinks: Used as heat sinks for high-power electronic devices.

Product Advantages

• High Precision: Thanks to CNC machining, the graphite plates have absolute dimensional accuracy, facilitating high-precision mass production.

• Heat and Corrosion Resistance: The extremely high heat and corrosion resistance of graphite ensures a long lifespan for the product and allows for multiple reuses.

• Chemical Inertness: Graphite is an inert material that does not react with other materials, ensuring the quality and purity of the final product.

• Optimized Costs: The long lifespan and high production efficiency of our services help minimize investment and operational costs for our clients.

Post-Machining Product Inspection Process

1. Dimensional Inspection: We use digital calipers and other precision measuring tools to verify the dimensions of the graphite plate against the technical drawings.

2. Surface Finish Inspection: We conduct visual inspections and use specialized measuring devices to ensure the surface meets the requirements and is free of cracks or defects.

3. Functional Test: A trial run is performed by fitting the parts to be processed onto the graphite plate to ensure perfect positioning and secure holding.

Packaging and Storage Process

• Cleaning: The product is thoroughly cleaned to remove carbon dust and other impurities.

• Careful Packaging: The product is packed in a sturdy cardboard box or a wooden crate with foam to prevent impact and chipping during transport.

• Labeling and Instructions: The packaging is clearly labeled with product information, including the product code, dimensions, and usage/storage instructions.

• Storage: We recommend storing the product in a dry, cool environment, away from heavy impacts, to maintain its best quality.
