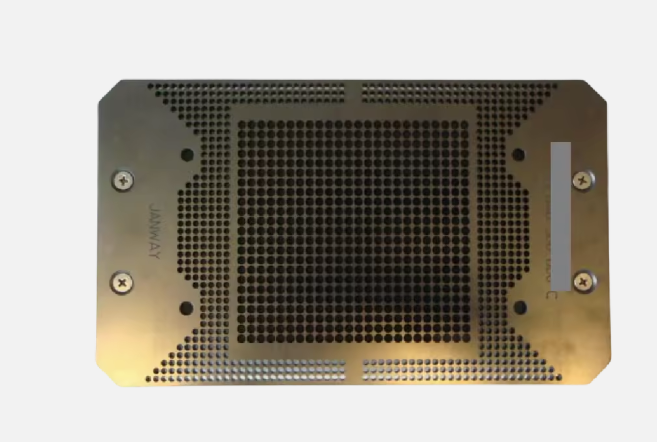

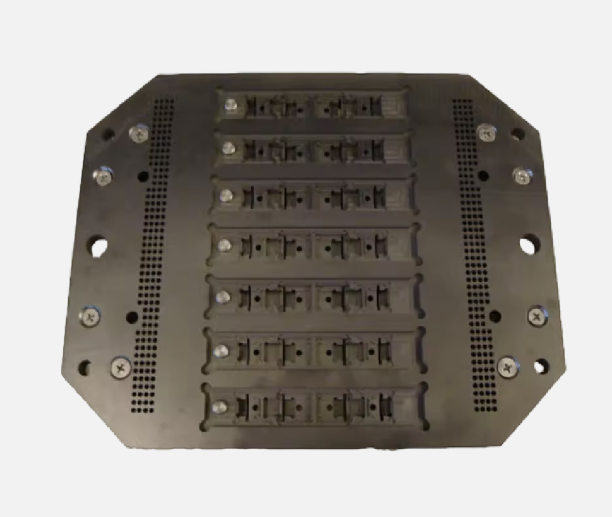

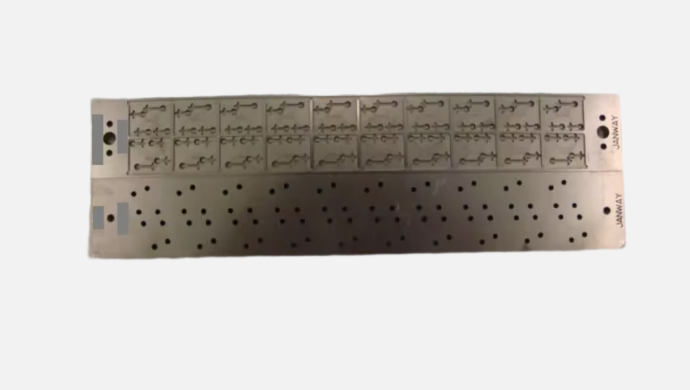

VINACNC - Expert Manufacturer of High-Precision Graphite Moulds for Diode Encapsulation

In the semiconductor and electronics industries, the encapsulation of sensitive components like diodes requires extremely high precision and heat resistance to ensure the quality of the final product. VINACNC is proud to offer a specialized graphite plate encapsulation mold manufacturing service, designed to meet the most stringent requirements of the diode encapsulation process.

Technical Specifications, Materials, and Applications

Material: The products are crafted from high-purity graphite. This material is known for its exceptional heat resistance, chemical corrosion resistance, and non-reactive nature with molten materials, which helps maintain the integrity of the diode during the molding process.
Technical Properties:
- Heat Resistance: Graphite can withstand extremely high temperatures, making it ideal for encapsulation processes that require high heat to shape the material.
- Tight Tolerances: The molds are CNC machined to achieve precise tolerances, ensuring the shape and dimensions of the diode encapsulation are perfect.
- Smooth Surface: Graphite molds have a naturally smooth surface, which allows the encapsulated product to easily separate from the mold after cooling without damage.
Applications: Graphite encapsulation molds are used for encapsulating electronic components, especially diodes, in the semiconductor manufacturing and other electronics industries.

Product Advantages

High Precision: Thanks to CNC machining, the molds have absolute dimensional accuracy, creating uniform and standard-compliant encapsulation layers.
Heat and Corrosion Resistance: The extremely high heat and corrosion resistance of graphite ensures a long mold lifespan and allows for multiple reuses.
Chemical Inertness: Graphite is an inert material that does not react with the encapsulation material, ensuring the quality and integrity of the final product.
Optimized Costs: The long mold lifespan and high production efficiency help minimize investment and operational costs for our clients.

Post-Machining Product Inspection Process

Dimensional Inspection: We use digital calipers and other precision measuring tools to verify the dimensions of the graphite mold against the technical drawings.
Surface Finish Inspection: We conduct visual inspections and use specialized measuring devices to ensure the mold surface meets the requirements and is free of cracks or defects.
Functional Test: A trial encapsulation run is performed to evaluate the quality of the resulting product and the mold's release properties.

Packaging and Storage Process

Cleaning: The mold is thoroughly cleaned to remove carbon dust and other impurities.
Careful Packaging: The product is packed in a sturdy cardboard box or a wooden crate with foam to prevent impact and chipping during transport.
Labeling and Instructions: The packaging is clearly labeled with product information, including the product code, dimensions, and usage/storage instructions.
Storage: We recommend storing the mold in a dry, cool environment, away from heavy impacts, to maintain its best quality.
