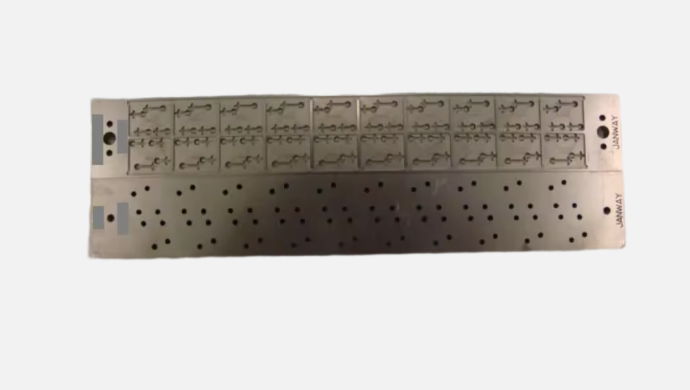

Graphite Jig: The Optimal Solution for High-Temperature Heat Dissipation

The detail information of product

VINACNC - Expert in High-Precision CNC Machining of Graphite Jigs for Semiconductor Heat Dissipation

In the semiconductor industry, the assembly of sensitive electronic components requires extremely high precision and thermal management to ensure the quality and longevity of the final product. VINACNC is proud to offer a specialized graphite jig manufacturing service, meticulously CNC machined to meet the most stringent requirements of semiconductor heat dissipation.

Technical Specifications, Materials, and Applications

Material: The products are crafted from high-purity graphite. This material stands out for its exceptional heat resistance, chemical corrosion resistance, and non-reactive nature with other materials, which helps maintain the integrity of the components during the manufacturing process.
Technical Properties:
- Heat Resistance: Graphite can withstand temperatures of over 3000°C, making it ideal for high-temperature processes such as soldering, sintering, or heat treatment.
- High Precision: The jigs are CNC machined to achieve precise tolerances, ensuring that the components are perfectly positioned and held securely throughout the assembly process.
- Thermal Conductivity: Graphite has excellent thermal conductivity, which helps to dissipate heat efficiently during manufacturing, protecting sensitive components from overheating.
Applications: Graphite jigs are widely used for:
- Semiconductor Heat Dissipation: Positioning and holding semiconductor chips during thermal processes like soldering and encapsulation, while also acting as a temporary heat sink.
- Semiconductor Assembly: Ensuring perfect alignment of components during automated assembly processes.
- Thermal Processing: Used as a fixture for high-temperature thermal processes.

Product Advantages

High Precision: Thanks to CNC machining, our jigs have absolute dimensional accuracy, facilitating high-precision mass production.
Heat and Corrosion Resistance: The extremely high heat and corrosion resistance of graphite ensures a long jig lifespan and allows for multiple reuses.
Chemical Inertness: Graphite is an inert material that does not react with other materials, ensuring the quality and purity of the final product.
Optimized Costs: The long lifespan and high production efficiency of our jigs help minimize investment and operational costs for our clients.

Post-Machining Product Inspection Process

Dimensional Inspection: We use digital calipers and other precision measuring tools to verify the dimensions of the graphite jig against the technical drawings.
Surface Finish Inspection: We conduct visual inspections and use specialized measuring devices to ensure the surface meets the requirements and is free of cracks or defects.
Functional Test: A trial run is performed by fitting the components to be produced onto the jig to ensure perfect positioning and secure holding.

Packaging and Storage Process

Cleaning: The jig is thoroughly cleaned to remove carbon dust and other impurities.
Careful Packaging: The product is packed in a sturdy cardboard box or a wooden crate with foam to prevent impact and chipping during transport.
Labeling and Instructions: The packaging is clearly labeled with product information, including the product code, dimensions, and usage/storage instructions.
Storage: We recommend storing the jig in a dry, cool environment, away from heavy impacts, to maintain its best quality.
