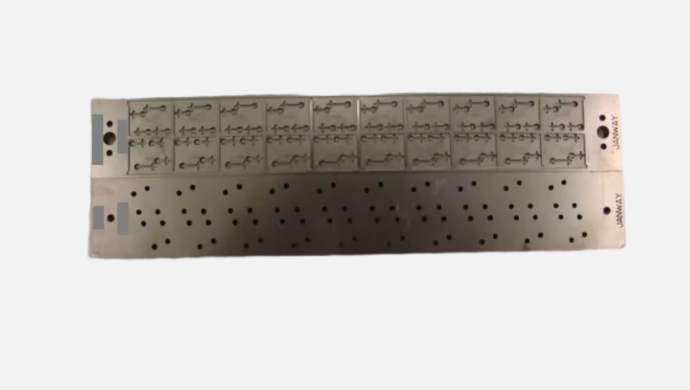

VINACNC - Expert in High-Precision CNC Machining of Graphite Jigs for Semiconductor Assembly

In the semiconductor and electronics industries, the assembly of components requires extremely high precision and heat resistance to ensure the quality of the final product. VINACNC is proud to offer a specialized custom CNC machining service for graphite jigs, designed to meet the most stringent requirements of the semiconductor assembly process.

Technical Specifications, Materials, and Applications

• Material: The products are crafted from high-purity graphite. This material stands out for its exceptional heat resistance, chemical corrosion resistance, and non-reactive nature with other materials, which helps maintain the integrity of the components during the assembly process.

• Technical Properties:

  • Heat Resistance: Graphite can withstand temperatures of over 3000°C, making it ideal for high-temperature processes such as soldering, sintering, or heat treatment.

  • High Precision: The jigs are CNC machined to achieve precise tolerances, ensuring that the components are perfectly positioned and held securely throughout the assembly process.

  • Thermal Conductivity: Graphite has excellent thermal conductivity, which helps to dissipate heat efficiently during assembly, protecting sensitive components from overheating.

• Applications: Graphite jigs are widely used for:

  • Semiconductor Assembly: Positioning and holding semiconductor chips, integrated circuits (ICs), and other sensitive components during soldering and other assembly processes.

  • Electronic Component Manufacturing: Used in sintering furnaces, vacuum furnaces, and other semiconductor production equipment.

Product Advantages

• High Precision: Thanks to CNC machining, our jigs have absolute dimensional accuracy, facilitating high-precision mass production.

• Heat and Corrosion Resistance: The extremely high heat and corrosion resistance of graphite ensures a long jig lifespan and allows for multiple reuses.

• Chemical Inertness: Graphite is an inert material that does not react with other materials, ensuring the quality and integrity of the final product.

• Optimized Costs: The long lifespan and high production efficiency of our jigs help minimize investment and operational costs for our clients.

Post-Machining Product Inspection Process

1. Dimensional Inspection: We use digital calipers and other precision measuring tools to verify the dimensions of the graphite jig against the technical drawings.

2. Surface Finish Inspection: We conduct visual inspections and use specialized measuring devices to ensure the surface meets the requirements and is free of cracks or defects.

3. Functional Test: A trial run is performed by fitting the parts to be assembled onto the jig to ensure perfect positioning and secure holding.

Packaging and Storage Process

• Cleaning: The jig is thoroughly cleaned to remove carbon dust and other impurities.

• Careful Packaging: The product is packed in a sturdy cardboard box or a wooden crate with foam to prevent impact and chipping during transport.

• Labeling and Instructions: The packaging is clearly labeled with product information, including the product code, dimensions, and usage/storage instructions.

• Storage: We recommend storing the jig in a dry, cool environment, away from heavy impacts, to maintain its best quality.
