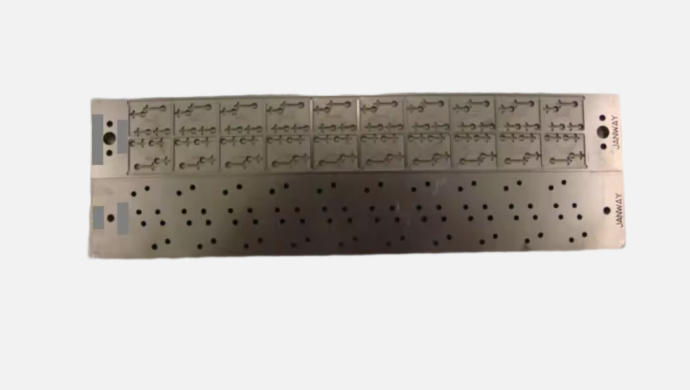

VINACNC - Expert in High-Precision CNC Machining of Graphite Parts for Semiconductor Tooling

In the semiconductor industry, manufacturing tooling and components requires extremely high precision and heat resistance to ensure the quality of the final product. VINACNC is proud to offer a specialized custom CNC machining service for graphite parts, designed to meet the most stringent requirements of the semiconductor tooling production process.

Technical Specifications, Materials, and Applications

• Material: The products are crafted from high-purity graphite. This material stands out for its exceptional heat resistance, chemical corrosion resistance, and non-reactive nature with other materials, which helps maintain the integrity of the components throughout the manufacturing process.

• Technical Properties:

  • Heat Resistance: Graphite can withstand temperatures of over 3000°C, making it ideal for high-temperature processes such as soldering, sintering, or heat treatment.

  • High Precision: The graphite parts are CNC machined to achieve precise tolerances, ensuring that the components are perfectly positioned and shaped throughout the production process.

  • Thermal Conductivity: Graphite has excellent thermal conductivity, which helps to dissipate heat efficiently during manufacturing, protecting sensitive components from overheating.

• Applications: Graphite parts are widely used for:

  • Semiconductor Tooling: Components in assembly machines, furnaces, sintering ovens, and other semiconductor production equipment.

  • Jigs and Fixtures: Positioning and holding semiconductor components during thermal processes.

  • Electrodes: Used as electrodes in Electrical Discharge Machining (EDM).

Product Advantages

• High Precision: Thanks to CNC machining, our graphite parts have absolute dimensional accuracy, facilitating high-precision mass production.

• Heat and Corrosion Resistance: The extremely high heat and corrosion resistance of graphite ensures a long lifespan for the products and allows for multiple reuses.

• Chemical Inertness: Graphite is an inert material that does not react with other materials, ensuring the quality and purity of the final product.

• Optimized Costs: The long lifespan and high production efficiency of our products help minimize investment and operational costs for our clients.

Post-Machining Product Inspection Process

1. Dimensional Inspection: We use digital calipers and other precision measuring tools to verify the dimensions of the graphite part against the technical drawings.

2. Surface Finish Inspection: We conduct visual inspections and use specialized measuring devices to ensure the surface meets the requirements and is free of cracks or defects.

3. Functional Test: A trial run is performed by fitting the components to be produced onto the part to ensure perfect positioning and secure holding.

Packaging and Storage Process

• Cleaning: The part is thoroughly cleaned to remove carbon dust and other impurities.

• Careful Packaging: The product is packed in a sturdy cardboard box or a wooden crate with foam to prevent impact and chipping during transport.

• Labeling and Instructions: The packaging is clearly labeled with product information, including the product code, dimensions, and usage/storage instructions.

• Storage: We recommend storing the part in a dry, cool environment, away from heavy impacts, to maintain its best quality.
