Precision Graphite Base for Electronic Packaging Line

The detail information of product

VINACNC - Expert in High-Precision CNC Machining of Graphite Bases for Electronic Packaging Lines

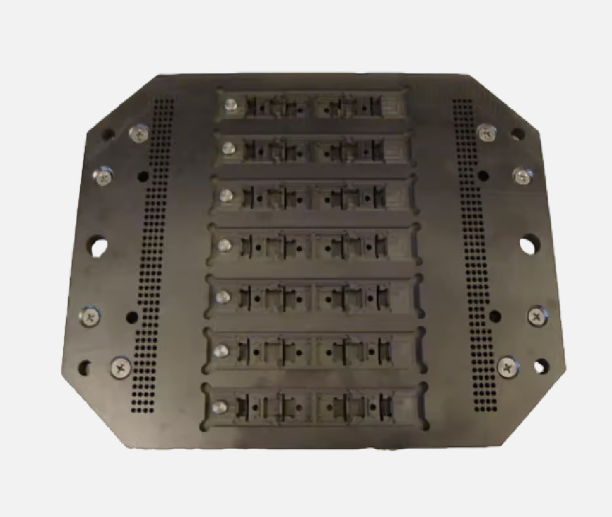

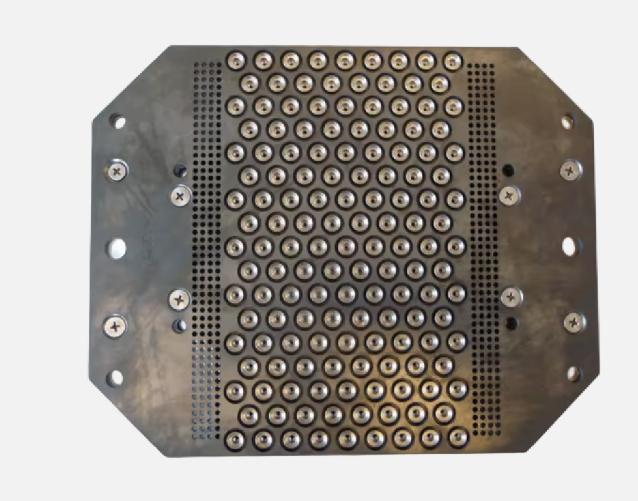

In the semiconductor and electronics industries, a graphite base is a crucial component on packaging lines, used to position and support electronic components during the manufacturing process. VINACNC is proud to offer a specialized precision graphite base manufacturing service, meticulously CNC machined to meet the most stringent requirements of the electronic packaging line process.

Technical Specifications, Materials, and Applications

Material: The products are crafted from high-purity graphite. This material stands out for its exceptional heat resistance, chemical corrosion resistance, and non-reactive nature with other materials, which helps maintain the integrity of the components during processing.
Technical Properties:
- Heat Resistance: Graphite can withstand temperatures of over 3000°C, making it ideal for high-temperature processes such as soldering, sintering, or heat treatment.
- High Precision: The bases are CNC machined to achieve precise tolerances, ensuring that components are perfectly positioned and held securely throughout the assembly process.
- Thermal Conductivity: Graphite has excellent thermal conductivity, which helps to dissipate heat efficiently during assembly, protecting sensitive components from overheating.
Applications: Graphite bases are widely used on electronic packaging lines for:
- Component Positioning and Holding: Securing semiconductor chips, integrated circuits, or other electronic components during soldering, sintering, or heat treatment.
- Semiconductor Assembly: Ensuring perfect alignment of components during automated assembly processes.
- Thermal Processing: Serving as a thermal fixture for small, complex components.

Product Advantages

High Precision: Thanks to CNC machining, our bases have absolute dimensional accuracy, facilitating high-precision mass production.
Heat and Corrosion Resistance: The extremely high heat and corrosion resistance of graphite ensures a long lifespan for the base and allows for multiple reuses.
Chemical Inertness: Graphite is an inert material that does not react with other materials, ensuring the quality and purity of the final product.
Optimized Costs: The long lifespan and high production efficiency of our bases help minimize investment and operational costs for our clients.

Post-Machining Product Inspection Process

Dimensional Inspection: We use digital calipers and other precision measuring tools to verify the dimensions of the graphite base against the technical drawings.
Surface Finish Inspection: We conduct visual inspections and use specialized measuring devices to ensure the surface meets the requirements and is free of cracks or defects.
Functional Test: A trial run is performed by fitting the components to be processed onto the base to ensure perfect positioning and secure holding.

Packaging and Storage Process

Cleaning: The base is thoroughly cleaned to remove carbon dust and other impurities.
Careful Packaging: The product is packed in a sturdy cardboard box or a wooden crate with foam to prevent impact and chipping during transport.
Labeling and Instructions: The packaging is clearly labeled with product information, including the product code, dimensions, and usage/storage instructions.
Storage: We recommend storing the base in a dry, cool environment, away from heavy impacts, to maintain its best quality.
