VINACNC - Experts in High Precision Plastic and Metal Die Casting Moulds

In the component manufacturing industry, mould making plays a pivotal role, directly determining the quality and efficiency of production. VINACNC is proud to offer comprehensive mould making services, including injection moulds, compression moulds, and metal die casting moulds. We are committed to delivering highly precise, durable, and cost-effective mould solutions that meet all stringent technical requirements.

Technical Specifications, Materials, and Applications

• Mould Materials: Our moulds are manufactured from high-quality tool steels such as P20, 718, NAK80, H13. Depending on the required durability and production volume, we will recommend the most suitable material to ensure a long mould lifespan.

• Technical Properties:

  • Cold Runner Injection Moulds: The cold runner system is simple and cost-effective, suitable for many types of plastic parts.

  • Compression Moulds: Ideal for parts made from composite or thermoset plastics, producing products with high mechanical strength.

  • Metal Die Casting Moulds: Used to produce metal parts with a dense structure, thin walls, and extremely tight tolerances at high speed.

• Applications: Our mould solutions are widely used to produce:

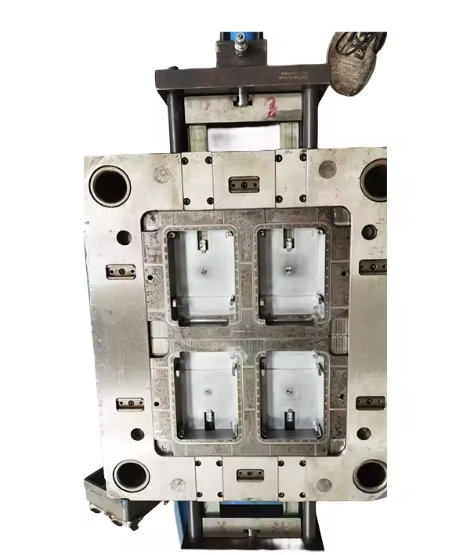

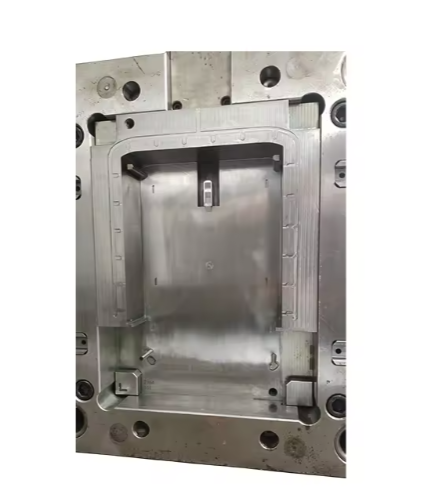

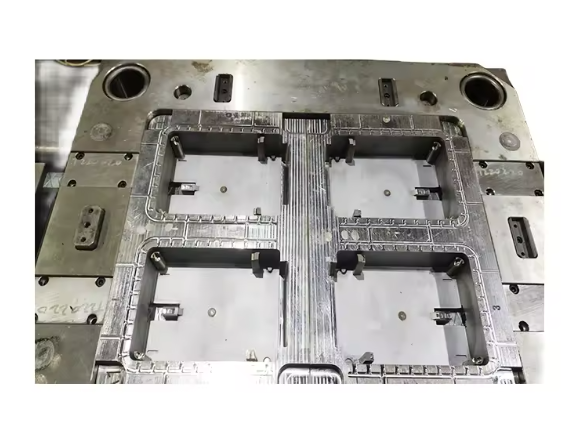

  • Electronic Energy Meter Boxes: Covers, bases, and lids for electric meters, requiring high precision for assembly.

  • Electrical Enclosures: Protective housings for electronic devices, ensuring dust and impact resistance.



  • Metal Parts: Structural components, machine housings, and automotive parts cast from aluminum or zinc.

Product Advantages

• Precision and Consistent Quality: Our mould design and manufacturing process is strictly controlled with advanced CNC technology, ensuring the moulds have high precision, a long lifespan, and the final products have consistent quality.

• Customizable Solutions: We offer a custom mould design and manufacturing service, from technical drawings to sample products, ensuring the mould perfectly suits the intended use.

• Optimized Costs: The selection of the right moulding method, such as cold runner or compression, helps optimize production costs while maintaining product quality.

• Durability and High Performance: By using high-quality steel and advanced heat treatment processes, our moulds have high wear and pressure resistance, capable of withstanding millions of production cycles.

Post-Machining Product Inspection Process

1. Dimensional Inspection: We use a Coordinate Measuring Machine (CMM) to verify all critical mould dimensions against the design drawings.

2. Surface Finish Inspection: We use a surface roughness tester to ensure the mould cavity surface meets the requirements.

3. Fit and Assembly Test: The mould components are assembled to ensure there are no errors in the machining process.

4. Mould Trial Run: We perform a trial run on a real press machine to evaluate the quality of the sample products and operational performance.

Packaging and Storage Process

• Cleaning and Rust Prevention: The mould is cleaned and coated with a specialized anti-rust oil to protect its precision surfaces.

• Secure Packaging: The mould is securely packed in a custom wooden crate with cushioning materials to prevent damage during transport.

• Information Labeling: The packaging is clearly labeled with the product code, weight, dimensions, and handling instructions.

• Storage Instructions: We recommend storing the mould in a dry, temperature-stable environment to prevent rust and damage.
