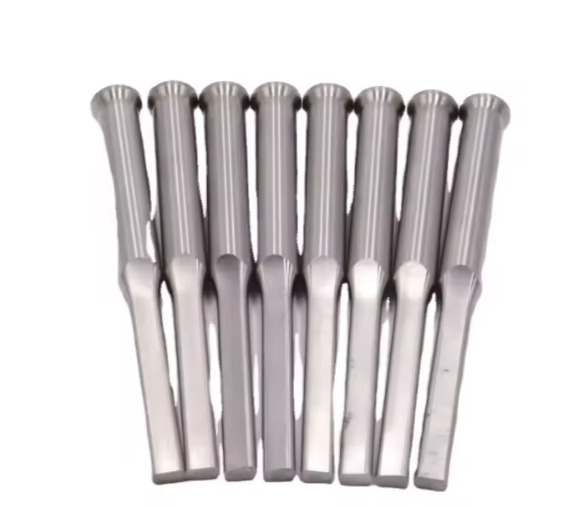

Standard Mold Parts: The Optimal Solution with Ejector Pins, Sleeves, and Drilling

The detail information of product

VINACNC - Expert in Precision Stamping and Plastic Injection Mold Parts from Stainless Steel

In the mold industry, components such as ejector pins and ejector sleeves are crucial for determining the precision and efficiency of the production process. VINACNC is proud to offer manufacturing services for precision punch press die accessories and plastic injection mold parts from stainless steel, meeting the most stringent standards of the industry.

Technical Specifications, Materials, and Applications

Material: The products are crafted from high-quality materials, especially stainless steel, known for its absolute corrosion resistance, high hardness, and good toughness after heat treatment.
Technical Properties:
- High Precision: The components are CNC machined with extremely tight tolerances, ensuring a perfect fit with the mold and helping to create parts with precise and uniform dimensions.
- Corrosion Resistance: Stainless steel's corrosion resistance allows components to function effectively in humid or chemical environments without rusting, extending the lifespan of the mould.
- Drilling: We provide precise drilling services on mould components, ensuring concentricity and high-quality hole surfaces.
Applications: Our stamping and injection mold parts are indispensable components in moulds for cutting, punching, and shaping metal or plastic parts. They are widely used in industries producing medical devices, food processing equipment, automotive parts, and precision machinery, where high hygiene and corrosion resistance are required.

Product Advantages

Superior Quality: With a strictly controlled manufacturing process from material selection to machining, our products consistently achieve the highest quality.
Absolute Precision: Dimensions are strictly controlled down to the micrometer level, ensuring the components operate in perfect conjunction and minimizing the risk of product defects.
Optimized Performance: The smooth operation helps to reduce the cycle time and enhances overall production efficiency.
Effective Corrosion Resistance: The corrosion resistance of stainless steel ensures the product performs reliably in harsh environments.

Post-Machining Product Inspection Process

Hardness Test: We use a professional hardness tester to verify the hardness of the heat-treated material.
Dimensional and Tolerance Check: We use a Coordinate Measuring Machine (CMM) and other high-precision measuring instruments to check all critical dimensions and tolerances against the technical drawings.
Surface Inspection: We use a surface roughness tester and visual inspection to ensure there are no cracks, scratches, or other defects.
Functional Test: The components are test-fitted with related parts to ensure a perfect fit and smooth operation.

Packaging and Storage Process

Cleaning and Rust Prevention: The components are cleaned and coated with a specialized anti-rust oil to protect their precision surfaces.
Secure Packaging: Products are carefully packed in rigid plastic boxes or cardboard crates with foam to prevent damage during transport.
Information Labeling: The packaging is clearly labeled with product information, including the product code, dimensions, and handling instructions.
Storage Instructions: We recommend storing the products in a dry, cool environment, away from high humidity and corrosive chemicals.
