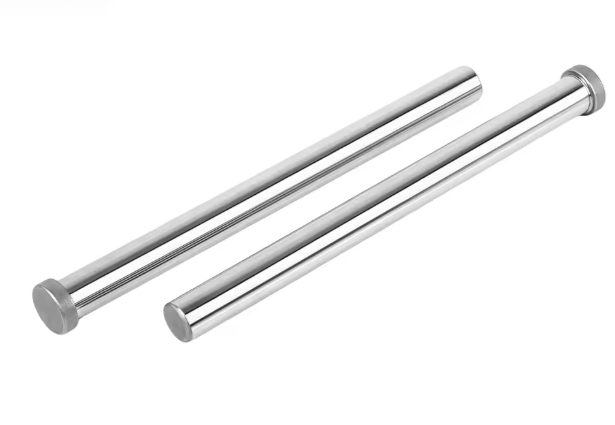

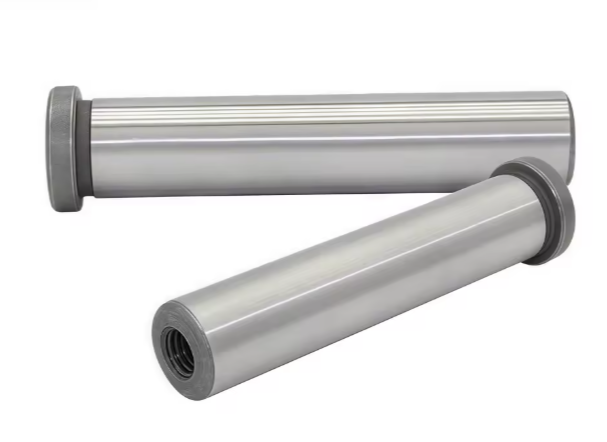

VINACNC - Expert in High-Precision Stainless Steel Mold Return Pins

In the mould industry, mold return pins are a core component that determines the accuracy and efficiency of the mold closing process. VINACNC is proud to supply high-quality stainless steel mold return pins, which are precision ground to ensure superior performance and durability, even in the harsh conditions of plastic injection molding.

Technical Specifications, Materials, and Applications

Material: The products are crafted from high-quality stainless steel such as SUS304, SUS420, and SUS440. These materials are known for their absolute corrosion resistance, high hardness, and excellent wear resistance after heat treatment.
Technical Properties:
- Precision Grinding: The shaft of the pin is precision ground with extremely tight diameter tolerances, ensuring a perfect fit with the mold and a smooth closing process.
- Hardness: After heat treatment, the material achieves a stable hardness (typically above HRC 50°), allowing the return pin to withstand high pressure and friction during continuous operation.
- Corrosion Resistance: The corrosion resistance of stainless steel allows the pin to operate effectively in humid or chemical environments without rusting, extending the mould's lifespan.
Applications: Stainless steel mold return pins are indispensable components in plastic injection molds and stamping dies, especially in industries like medical, food processing, and chemical, where high hygiene and corrosion resistance are required. Their primary function is to ensure that the ejector system has fully returned to its initial position before the mold closes, preventing collisions and damage.

Product Advantages

Superior Durability: With high-quality stainless steel, the return pins resist repetitive compressive force and friction during production, extending the mould's lifespan.
Absolute Precision: Meticulous machining ensures dimensions are strictly controlled down to the micrometre level, allowing the components to operate in perfect conjunction and minimizing the risk of mold damage.
Reliable Performance: The smooth operation of the return pins helps to reduce the molding cycle time and enhances overall production efficiency.
Corrosion Resistance: The stainless steel material ensures the product's durability in harsh environments, resisting corrosion from external factors.

Post-Machining Product Inspection Process

Hardness Test: We use a professional hardness tester to verify the hardness of the heat-treated material, ensuring it meets technical specifications.
Dimensional and Tolerance Check: We use a Coordinate Measuring Machine (CMM) or other high-precision measuring instruments to check the diameter, length, and concentricity.
Surface Inspection: We use a surface roughness tester and visual inspection to ensure there are no cracks, scratches, or other defects.
Functionality Test: The return pins are test-fitted with related parts to ensure a perfect fit and smooth operation.

Packaging and Storage Process

Cleaning and Rust Prevention: The products are cleaned and coated with a specialized anti-rust oil to protect their precision surfaces.
Secure Packaging: Products are carefully packed in rigid plastic boxes or cardboard crates with foam to prevent damage during transport.
Information Labeling: The packaging is clearly labeled with the product code, weight, dimensions, and handling instructions.
Storage Instructions: We recommend storing the products in a dry, cool environment, away from high humidity and corrosive chemicals.
