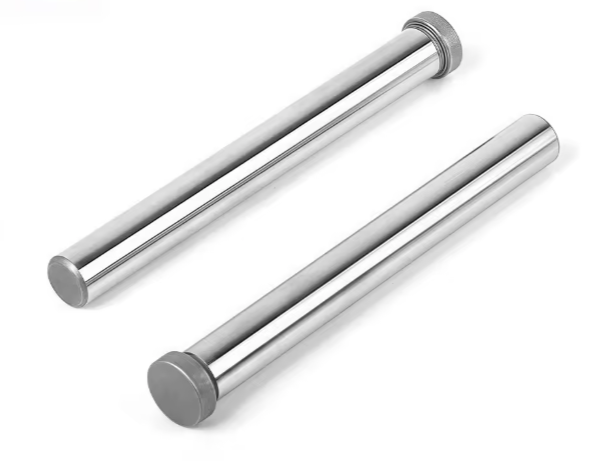

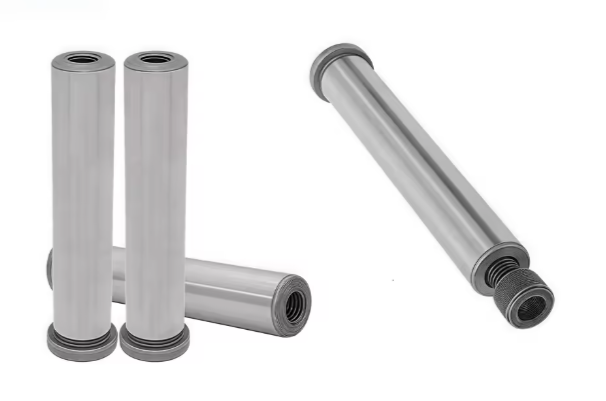

VINACNC - Expert in Customizable Die Return Pins with Various Sizes

In the mould industry, die return pins are a core component that determines the accuracy and efficiency of the mold closing process. VINACNC is proud to supply customizable die return pins with the ability to produce a wide range of lengths and diameters, designed to meet the specific requirements of different mold projects. We ensure superior performance and durability.

Technical Specifications, Materials, and Applications

Material: The products are crafted from high-quality tool steels such as SKD61, SKH51, H13, or other materials as per customer requirements. These materials are known for their high hardness and excellent wear resistance after heat treatment.
Technical Properties:
- Hardness: After heat treatment, the material achieves a stable hardness (typically above HRC 50°), allowing the return pins to withstand high pressure and friction during continuous operation.
- Precision: The products are machined with extremely tight diameter tolerances, ensuring a perfect fit with the mold and a smooth closing process.
- Customizable Sizes: We can produce die return pins in various lengths and diameters, from standard sizes to special specifications, ensuring a perfect fit for your mold design.
Applications: Die return pins are indispensable components in plastic injection molds and stamping die systems. Their primary function is to ensure that the ejector system has fully returned to its initial position before the mold closes, preventing collisions and damage.

Product Advantages

Superior Durability and Reliable Performance: With high-quality materials, the die return pins resist repetitive compressive force and friction during production, extending the mould's lifespan.
Absolute Precision: Meticulous machining ensures dimensions are strictly controlled down to the micrometre level, allowing the components to operate in perfect conjunction and minimizing the risk of mold damage.
Flexible Customization: Our ability to produce return pins in a wide range of sizes and specifications makes it easy for clients to find the perfect component for any project.
Optimized Efficiency: The smooth operation of the return pins helps to reduce the molding cycle time and enhances overall production efficiency.

Post-Machining Product Inspection Process

Hardness Test: We use a professional hardness tester to verify the hardness of the heat-treated material, ensuring it meets technical specifications.
Dimensional and Tolerance Check: We use a Coordinate Measuring Machine (CMM) or other high-precision measuring instruments to check the diameter, length, and concentricity.
Surface Inspection: We use a surface roughness tester and visual inspection to ensure there are no cracks, scratches, or other defects.
Functionality Test: The return pins are test-fitted with related parts to ensure a perfect fit and smooth operation.

Packaging and Storage Process

Cleaning and Rust Prevention: The products are cleaned and coated with a specialized anti-rust oil to protect their precision surfaces.
Secure Packaging: Products are carefully packed in rigid plastic boxes or cardboard crates with foam to prevent damage during transport.
Information Labeling: The packaging is clearly labeled with the product code, weight, dimensions, and handling instructions.
Storage Instructions: We recommend storing the products in a dry, cool environment, away from high humidity and corrosive chemicals.
