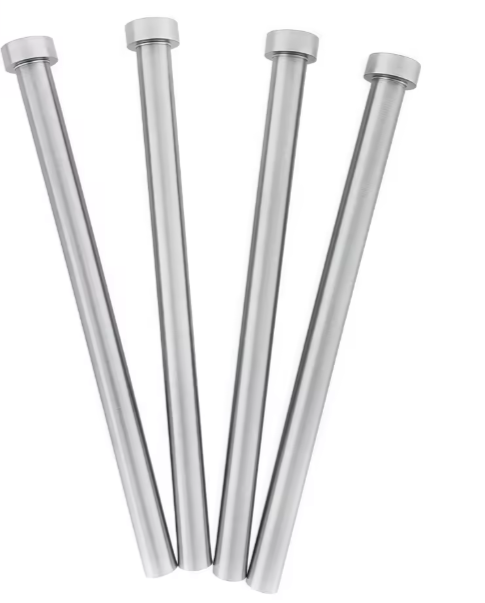

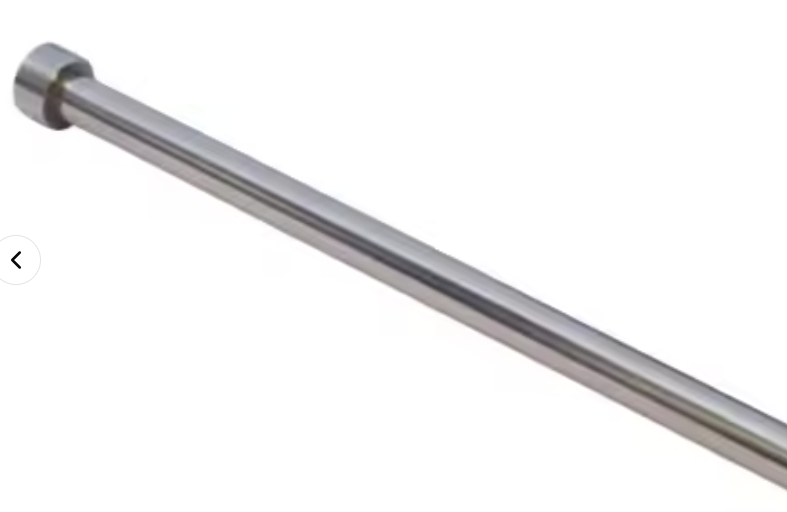

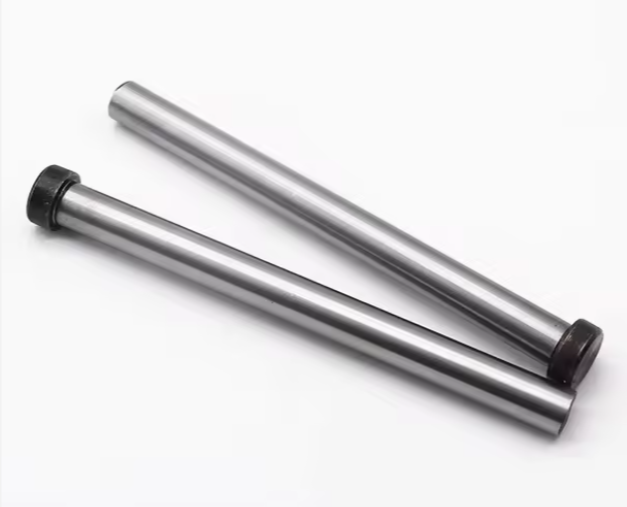

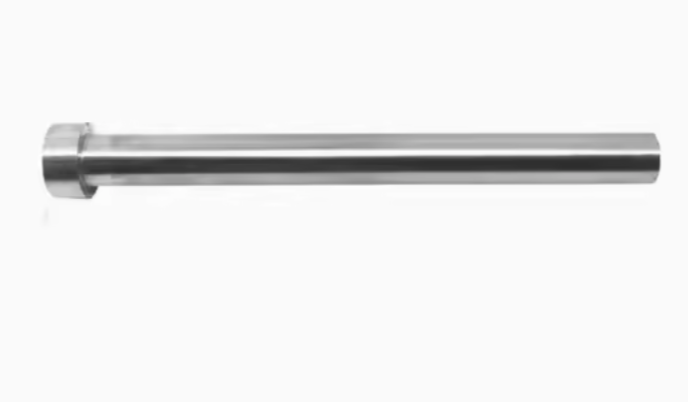

VINACNC: Expert in High-Quality S45C Ejector Pins for Moulds

The detail information of product

VINACNC - Expert in S45C Ejector Pins that Handle High Pressures and Maintain Their Shape

In the mould industry, the ejector pin is a core component that determines the precision and efficiency of the part ejection process. VINACNC is proud to supply high-quality S45C ejector pins with a controlled hardness of HRC 45-50° and tight tolerances. These pins are specifically designed to handle high pressures and maintain their shape over time, ensuring superior performance and durability even under harsh production conditions.

Technical Specifications, Materials, and Applications

Material: The product is crafted from S45C carbon steel (JIS), a common steel known for its good hardness and mechanical strength after heat treatment. It's an ideal choice for applications that require a balance between hardness and toughness.
Technical Properties:
- Hardness: After heat treatment, the material achieves a stable hardness of HRC 45-50°, allowing the ejector pin to withstand high pressure and friction during continuous operation without deforming.
- Precision: The product is machined with extremely tight diameter tolerances, ensuring a perfect fit with the mold, preventing plastic leakage, and guaranteeing the accuracy of the final product.
- Surface Finish: The surface is specially treated to achieve high smoothness, which reduces friction, ensures a seamless ejection process, and extends the lifespan of the pin.
Applications: S45C ejector pins are indispensable components in plastic injection molds and stamping die systems. Their primary function is to smoothly and precisely eject the cooled product from the mold cavity, preventing product damage and mold sticking.

Product Advantages

Superior Durability and Shape Retention: With optimized hardness, the ejector pin resists repetitive force and pressure during production, maintaining its original shape and extending the mould's lifespan.
Absolute Precision: Dimensions are strictly controlled down to the micrometre level, ensuring the ejector pin operates in perfect conjunction with the mold, minimizing the risk of plastic leakage and product defects.
Optimized Performance: The smooth operation of the ejector pin helps to reduce the molding cycle time and enhances overall production efficiency.
Reasonable Price: By using cost-effective S45C material and an optimized production process, we can offer products at a very competitive price.

Post-Machining Product Inspection Process

Hardness Test: We use a professional hardness tester to verify the hardness of the heat-treated material, ensuring it meets technical specifications.
Dimensional and Tolerance Check: We use a Coordinate Measuring Machine (CMM) or other high-precision measuring instruments to check the diameter, length, and concentricity.
Surface Inspection: We use a surface roughness tester and visual inspection to ensure there are no cracks, scratches, or other defects.
Functionality Test: The ejector pin is test-fitted with related components to ensure a perfect fit and smooth operation.

Packaging and Storage Process

Cleaning and Rust Prevention: The pin is cleaned and coated with a specialized anti-rust oil to protect its precision surfaces.
Secure Packaging: The product is carefully packed in a rigid plastic box or a cardboard crate with foam to prevent damage during transport.
Information Labeling: The packaging is clearly labeled with the product code, weight, dimensions, and handling instructions.
Storage Instructions: We recommend storing the product in a dry, cool environment, away from high humidity and corrosive chemicals.
