VINACNC: Expert in High-Quality S45C Ejector Pins for Moulds

The detail information of product

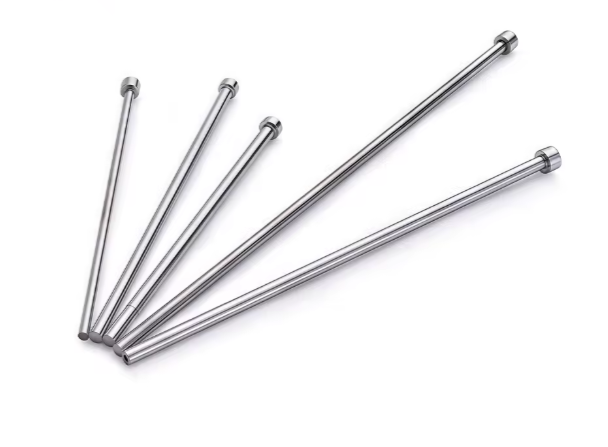

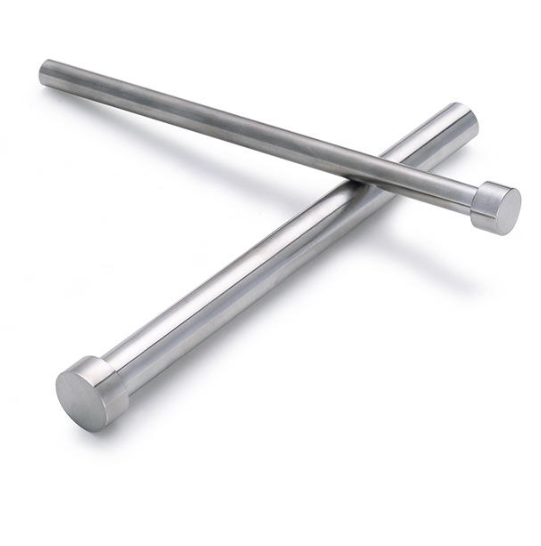

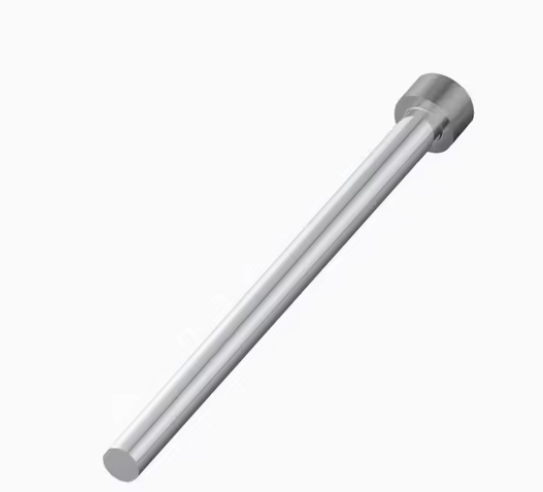

S45C Ejector Pin Ensures Smooth Ejection, Reducing Production Downtime

In the mould industry, the ejector pin is a core component that determines the precision and efficiency of the part ejection process. VINACNC is proud to supply high-quality S45C ejector pins with a controlled hardness and tight tolerances. These pins are designed to ensure smooth ejection and reduce production downtime, providing superior performance and durability even under harsh production conditions.

Technical Specifications, Materials, and Applications

Material: The product is crafted from S45C carbon steel (JIS), a common steel known for its good hardness and mechanical strength after heat treatment. It's an ideal choice for applications that require a balance between hardness and toughness.
Technical Properties:
- Hardness: After heat treatment, the material achieves a stable hardness (typically HRC 20-30°), allowing the ejector pin to withstand high pressure and friction during continuous operation without deforming.
- Precision: The product is machined with extremely tight diameter tolerances, ensuring a perfect fit with the mold, preventing plastic leakage, and guaranteeing the accuracy of the final product.
- Surface Finish: The surface is specially treated to achieve high smoothness, which reduces friction, ensures a seamless ejection process, and extends the lifespan of the pin.
Applications: S45C ejector pins are indispensable components in plastic injection molds and stamping die systems. Their primary function is to smoothly and precisely eject the cooled product from the mold cavity, preventing product damage and mold sticking.

Product Advantages

Guaranteed Smooth Ejection: Thanks to absolute machining precision and a specially treated surface, our S45C ejector pins ensure parts are ejected gently and efficiently, minimizing the risk of mold sticking or part damage.
Reduced Production Downtime: The smooth and efficient ejection process significantly shortens the molding cycle time and minimizes failures, thus increasing productivity and reducing production downtime.
Superior Durability: The ejector pin resists repetitive force and pressure during production, extending the mold's lifespan.
Absolute Precision: Dimensions are strictly controlled down to the micrometer level, ensuring the ejector pin operates in perfect conjunction with the mold, minimizing the risk of plastic leakage and product defects.

Post-Machining Product Inspection Process

Hardness Test: We use a professional hardness tester to verify the hardness of the heat-treated material, ensuring it meets technical specifications.
Dimensional and Tolerance Check: We use a Coordinate Measuring Machine (CMM) or other high-precision measuring instruments to check the diameter, length, and concentricity.
Surface Inspection: We use a surface roughness tester and visual inspection to ensure there are no cracks, scratches, or other defects.
Functionality Test: The ejector pin is test-fitted with related components to ensure a perfect fit and smooth operation.

Packaging and Storage Process

Cleaning and Rust Prevention: The pin is cleaned and coated with a specialized anti-rust oil to protect its precision surfaces.
Secure Packaging: The product is carefully packed in a rigid plastic box or a cardboard crate with foam to prevent damage during transport.
Information Labeling: The packaging is clearly labeled with the product code, weight, dimensions, and handling instructions.
Storage Instructions: We recommend storing the product in a dry, cool environment, away from high humidity and corrosive chemicals.
