Reset Rods: The Optimal Solution for High-Precision Moulds with Affordable Pricing

The detail information of product

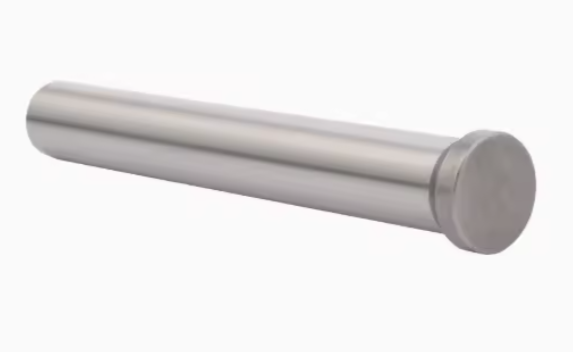

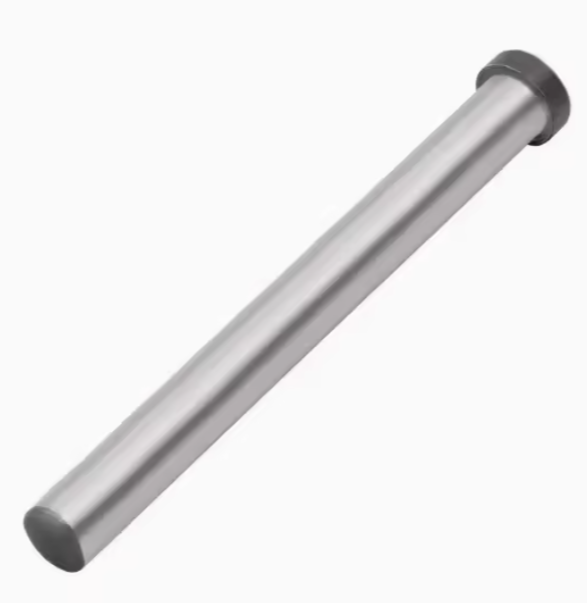

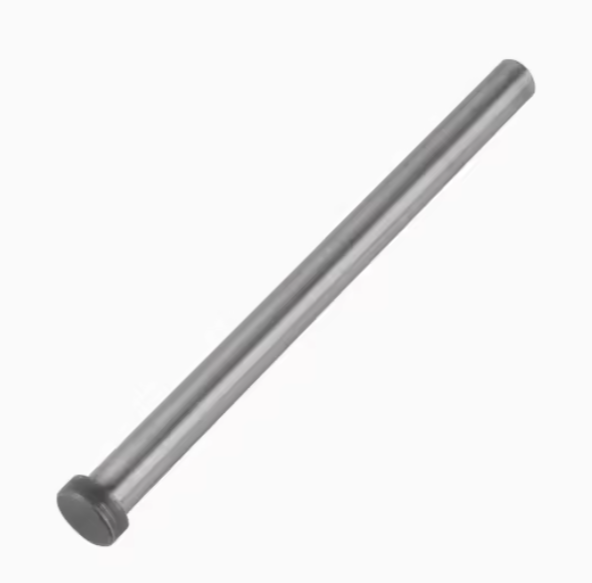

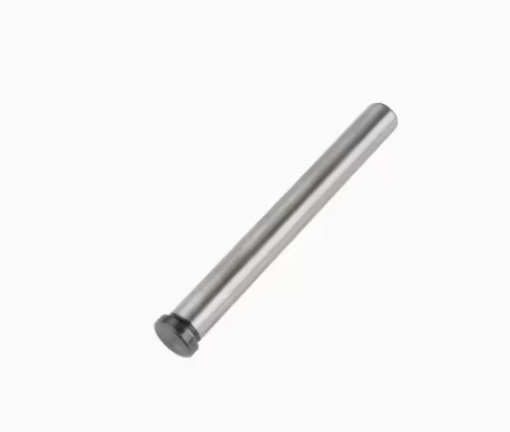

VINACNC - High Precision, Cost-Effective S45C Reset Rods for Industrial Use

In the mould industry, reset rods are a core component that determines the accuracy and efficiency of the mold closing process. VINACNC is proud to supply S45C reset rods with exceptional precision, manufactured directly at our factory with economical prices. Our product is an effective and cost-efficient solution for industrial plastic and metal molds.

Technical Specifications, Materials, and Applications

Material: The products are crafted from S45C carbon steel (JIS), a common steel known for its good hardness and mechanical strength after heat treatment. S45C is an ideal choice for applications that require a balance between hardness and toughness.
Technical Properties:
- Hardness: After heat treatment, the material achieves a stable hardness (typically HRC 20-30°), allowing the reset rods to withstand high pressure and friction during continuous operation.
- Precision: The products are machined with extremely tight diameter tolerances, ensuring a perfect fit with the mold and a smooth closing process.
- Surface Finish: The surface is specially treated to achieve high smoothness, which reduces friction, ensures a seamless reset process, and extends the lifespan of the rods.
Applications: S45C reset rods are indispensable components in industrial plastic injection molds and metal stamping die systems. Their primary function is to ensure that the ejector system has fully returned to its initial position before the mold closes, preventing collisions and damage.

Product Advantages

Favorable Factory Prices: With an optimized and efficient production process, we offer products directly from our factory, helping clients reduce intermediary costs and increase profits.
Exceptional Precision: Dimensions are strictly controlled down to the micrometre level, ensuring the reset rods operate in perfect conjunction with the mould, minimizing the risk of damage.
Superior Durability and Long Lifespan: With high-quality S45C material, the reset rods resist repetitive compressive force and friction, extending the mould's lifespan.
Optimized Performance: The smooth operation helps to reduce the molding cycle time and enhances overall production efficiency.

Post-Machining Product Inspection Process

Hardness Test: We use a professional hardness tester to verify the hardness of the heat-treated material, ensuring it meets technical specifications.
Dimensional and Tolerance Check: We use a Coordinate Measuring Machine (CMM) or other high-precision measuring instruments to check the diameter, length, and concentricity.
Surface Inspection: We use a surface roughness tester and visual inspection to ensure there are no cracks, scratches, or other defects.
Functionality Test: The reset rods are test-fitted with related parts to ensure a perfect fit and smooth operation.

Packaging and Storage Process

Cleaning and Rust Prevention: The products are cleaned and coated with a specialized anti-rust oil to protect their precision surfaces.
Secure Packaging: Products are carefully packed in rigid plastic boxes or cardboard crates with foam to prevent damage during transport.
Information Labeling: The packaging is clearly labeled with the product code, weight, dimensions, and handling instructions.
Storage Instructions: We recommend storing the products in a dry, cool environment, away from high humidity and corrosive chemicals.
