HSS Punch and Dies: The Optimal Solution for Manufacturing Home Appliance Parts

The detail information of product

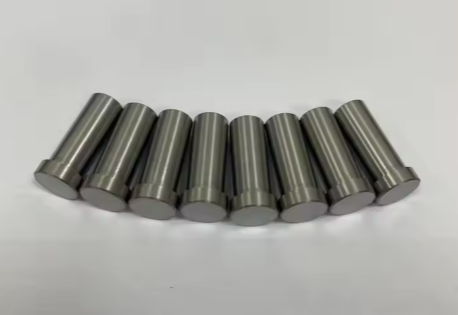

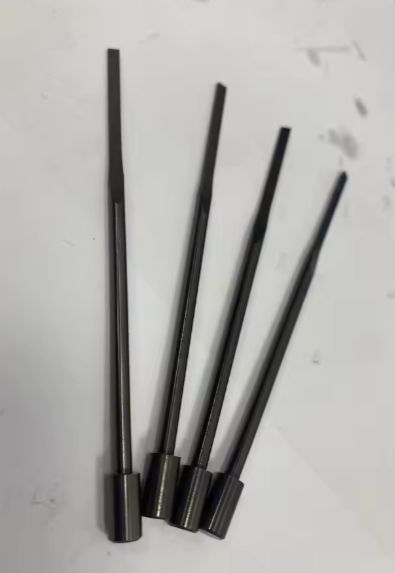

VINACNC - Expert in HSS Punch Pins and Dies for Household Appliances

In the household appliance manufacturing industry, creating metal parts requires moulds with exceptional precision and durability. Punch pins and punch and dies are core components of stamping molds, determining the accuracy and quality of the final product. VINACNC is proud to offer a manufacturing service for HSS punch pins and dies with high quality and competitive prices, meeting the most stringent standards of the household appliance production industry.

Technical Specifications, Materials, and Applications

Material: The products are crafted from HSS (High-Speed Steel), a high-quality tool steel widely used for its hardness, wear resistance, and good toughness after heat treatment.
Technical Properties:
- Hardness: After heat treatment, HSS material achieves a stable hardness (typically HRC 58-62°), allowing the punch pins to withstand high pressure and friction during continuous operation.
- Precision: Products are CNC machined with extremely tight diameter tolerances, ensuring a perfect fit with the die and helping to create parts with precise dimensions.
- Surface Finish: The surface is specially treated to achieve high smoothness, which reduces friction and extends the lifespan of the punch pins.
Applications: HSS punch pins and dies are indispensable components in stamping molds for cutting and punching holes in sheet metal or plastic parts. They are widely used in the manufacturing of household appliance parts, automotive components, and precision machinery.

Product Advantages

Superior Durability: With high-quality HSS material, the punch pins and dies resist repetitive force and pressure during production, extending the mould's lifespan.
Absolute Precision: Dimensions are strictly controlled down to the micrometer level, ensuring the components operate in perfect conjunction, minimizing the risk of product defects.
Optimized Performance: The smooth operation helps to reduce the stamping cycle time and enhances overall production efficiency.
Competitive Pricing: Thanks to our optimized and efficient production process, we can offer products at a very competitive price.

Post-Machining Product Inspection Process

Hardness Test: We use a professional hardness tester to verify the hardness of the heat-treated material, ensuring it meets technical specifications.
Dimensional and Tolerance Check: We use a Coordinate Measuring Machine (CMM) or other high-precision measuring instruments to check the diameter, length, and concentricity.
Surface Inspection: We use a surface roughness tester and visual inspection to ensure there are no cracks, scratches, or other defects.
Functional Test: The components are test-fitted with related parts to ensure a perfect fit and smooth operation.

Packaging and Storage Process

Cleaning and Rust Prevention: The punch pins are cleaned and coated with a specialized anti-rust oil to protect their precision surfaces.
Secure Packaging: Products are carefully packed in a rigid plastic box or a cardboard crate with foam to prevent damage during transport.
Information Labeling: The packaging is clearly labeled with product information, including the product code, dimensions, and handling instructions.
Storage Instructions: We recommend storing the products in a dry, cool environment, away from high humidity and corrosive chemicals.
