Tungsten Carbide Moulds and Parts: The Optimal Solution for Precision Manufacturing

The detail information of product

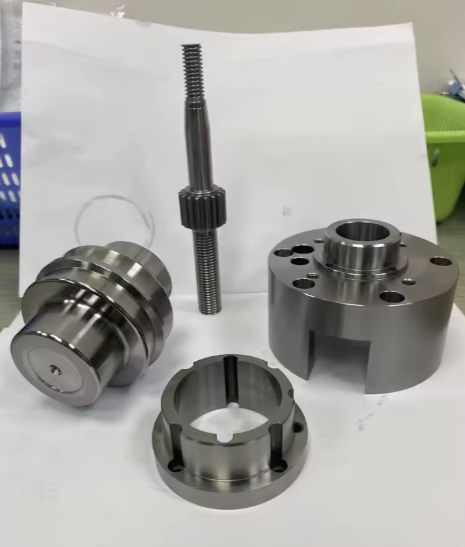

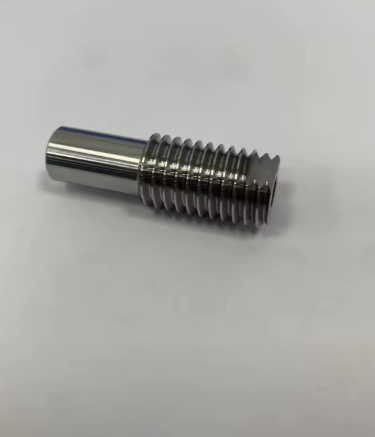

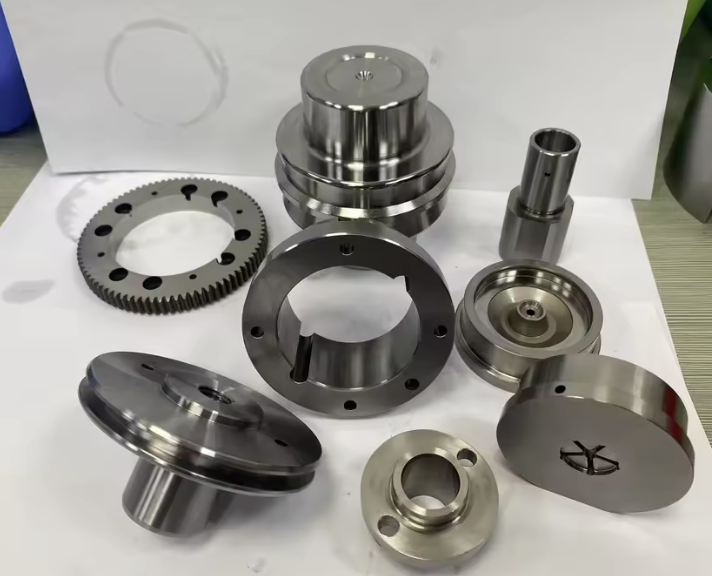

VINACNC - Expert in Tungsten Carbide Grinding Moulds and Parts

In the mould and stamping industry, moulds and their components play a pivotal role in determining the precision and efficiency of the production process. VINACNC is proud to offer a manufacturing service for high-quality tungsten carbide grinding moulds and parts at a competitive price, meeting the most stringent standards of the precision parts manufacturing industry.

Technical Specifications, Materials, and Applications

Materials: Our products are crafted from tungsten carbide hard alloy, also known as Carbide (especially the grinding type), a material renowned for its extremely high hardness, wear resistance, and durability. It is the ideal material for high-load and high-friction applications.
Technical Properties:
- Superior Hardness: Carbide material achieves extremely high hardness (typically above HRC 65°), enabling the parts to withstand immense pressure and friction during continuous operation.
- High-Precision Machining: Products are CNC machined with extremely tight tolerances, ensuring a perfect fit with the mold, which helps to create parts with precise dimensions.
- Special-Shaped: We have the capability to custom machine non-standard and special-shaped moulds and parts to meet our clients' unique requirements.
Applications: Our components are indispensable for stamping moulds used to cut and punch holes in sheet metal or plastic parts. They are widely used in the manufacturing of automotive parts, electronic device housings, and precision machinery.

Advantages of Our Products and Services

Superior Durability: With high-quality carbide material, our components resist repetitive force and pressure during production, significantly extending the lifespan of the mould.
Absolute Precision: Dimensions are strictly controlled down to the micrometre level, ensuring components operate in perfect conjunction and minimizing the risk of product defects.
Optimized Performance: The smooth operation helps to reduce the stamping cycle time and enhances overall production efficiency.
Flexible Customization: We provide a custom manufacturing service, from design to machining, ensuring the product perfectly matches the client's blueprints and intended use.

Post-Machining Product Inspection Process

Hardness Test: We use a professional hardness tester to verify the hardness of the material, ensuring it meets technical specifications.
Dimensional and Tolerance Check: We use a Coordinate Measuring Machine (CMM) to verify all critical dimensions and tolerances against the technical drawings.
Surface Inspection: We use a surface roughness tester and visual inspection to ensure there are no cracks, scratches, or other defects.
Functional Test: The components are test-fitted with related parts to ensure a perfect fit and smooth operation.

Packaging and Storage Process

Cleaning and Rust Prevention: The parts are cleaned and coated with a specialized anti-rust oil to protect their precision surfaces.
Secure Packaging: Products are carefully packed in rigid plastic boxes or cardboard crates with foam to prevent damage during transport.
Information Labeling: The packaging is clearly labeled with product information, including the product code, dimensions, and handling instructions.
Storage Instructions: We recommend storing the products in a dry, cool environment, away from high humidity and corrosive chemicals.
