VINACNC - Expert in High-Precision Punching and Ejector Pins for Injection Moulds

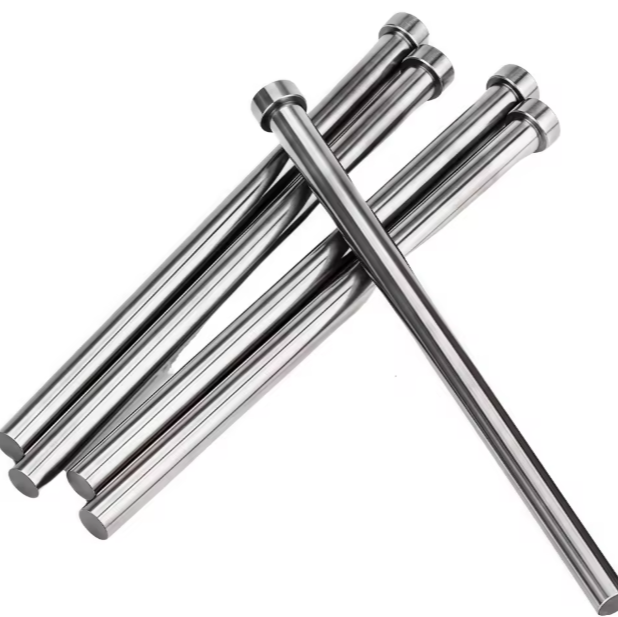

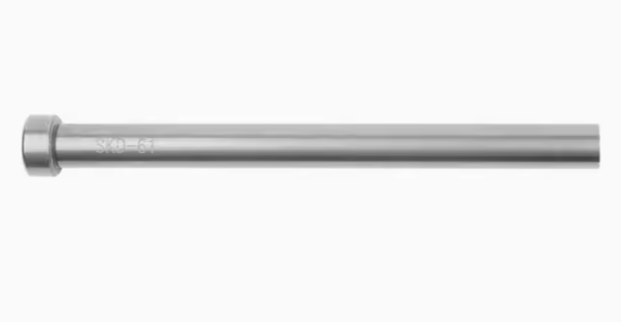

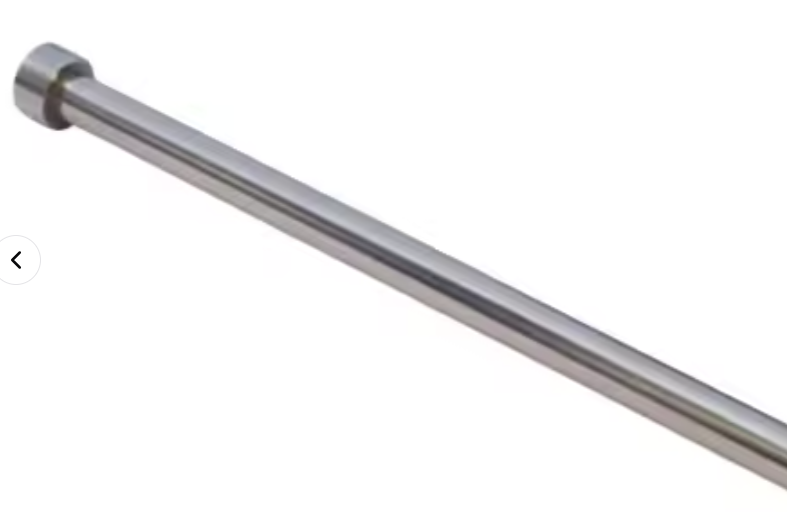

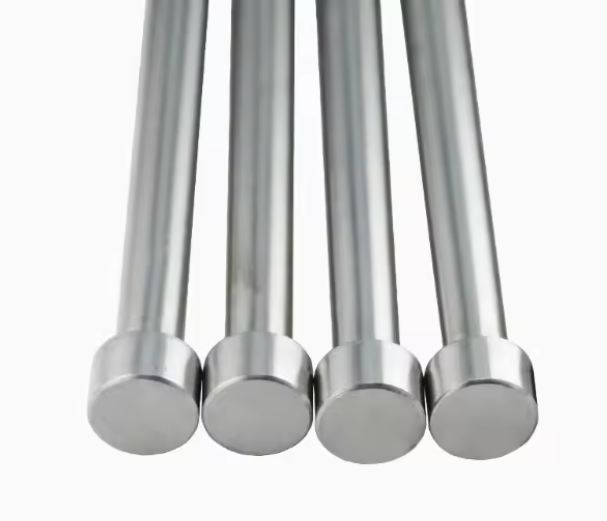

In the mould industry, punching pins and ejector pins are core components that determine the precision and efficiency of the manufacturing process. VINACNC is proud to supply 40Cr ejector pins and SKD61 punching pins with a specific dimension of 18mm diameter, along with high hardness and tight tolerances, ensuring superior performance and durability even under harsh production conditions. Our products are in stock and ready to ship (RTS) for immediate delivery.

Technical Specifications, Materials, and Applications

• Materials: The products are crafted from high-quality tool steels:

  • 40Cr Steel: A high-quality alloy steel with good strength and hardness after heat treatment, often used for ejector pins.

  • SKD61 Steel (JIS): A widely used tool steel known for its hardness, strength, and good heat resistance, suitable for punching pins in plastic injection and die-casting moulds.

• Technical Properties:

  • Dimensions: The pins have a diameter of 18mm. These dimensions can be customized according to customer requirements.

  • Tip: Features a round tip on the punching pin, which is suitable for various applications and minimizes marking on parts.

  • Hardness: After heat treatment, the materials achieve a stable hardness (typically around HRC 45-54°), allowing the pins to withstand high pressure and friction during continuous operation.

  • Precision: The products are machined with extremely tight diameter tolerances, ensuring a perfect fit with the mould, preventing material leakage, and guaranteeing the accuracy of the final product.

• Applications: Ejector pins and punch pins are indispensable components in plastic injection moulds and stamping dies for part ejection and hole punching. They are widely used in industries producing electronic device enclosures, automotive parts, and precision machinery.

Product Advantages

• Superior Durability and Performance: With high-quality materials, the ejector and punch pins resist repetitive force and pressure, extending the mould's lifespan.

• Absolute Precision: Dimensions are strictly controlled down to the micrometre level, ensuring the components operate in perfect conjunction, minimizing the risk of material leakage and product defects.

• Optimized Efficiency: The smooth operation helps to reduce the cycle time and enhances overall production efficiency.

• In-Stock & Ready to Ship: With a large inventory, we can quickly fulfill orders, ensuring our clients' production processes are not interrupted.

Post-Machining Product Inspection Process

1. Hardness Test: We use a professional hardness tester to verify the hardness of the heat-treated material, ensuring it meets technical specifications.

2. Dimensional and Tolerance Check: We use a Coordinate Measuring Machine (CMM) or other high-precision measuring instruments to check the diameter, length, and concentricity.

3. Surface Inspection: We use a surface roughness tester and visual inspection to ensure there are no cracks, scratches, or other defects.

4. Functionality Test: The components are test-fitted with related parts to ensure a perfect fit and smooth operation.

Packaging and Storage Process

• Cleaning and Rust Prevention: The components are cleaned and coated with a specialized anti-rust oil to protect their precision surfaces.

• Secure Packaging: Products are carefully packed in rigid plastic boxes or cardboard crates with foam to prevent damage during transport.

• Information Labeling: The packaging is clearly labeled with the product code, weight, dimensions, and handling instructions.

• Storage Instructions: We recommend storing the products in a dry, cool environment, away from high humidity and corrosive chemicals.
