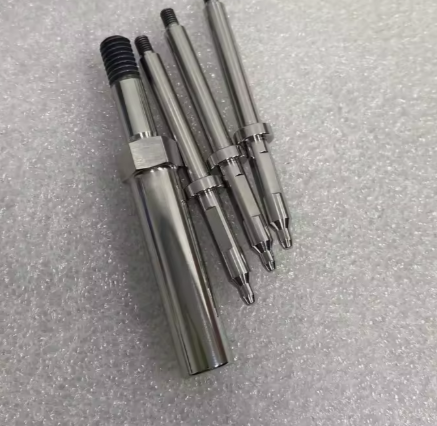

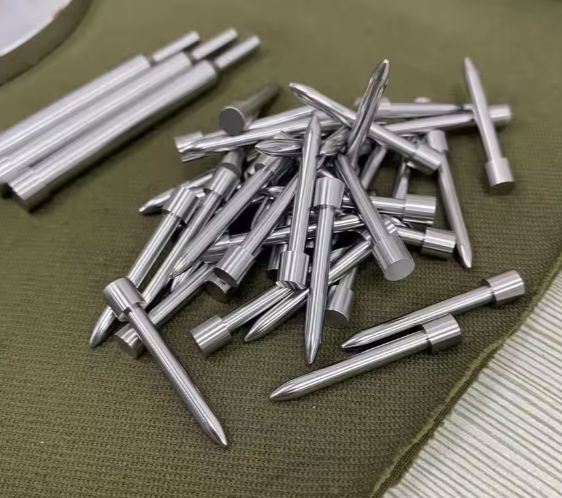

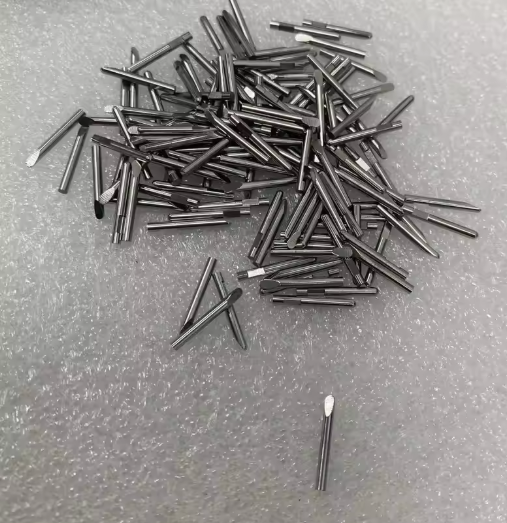

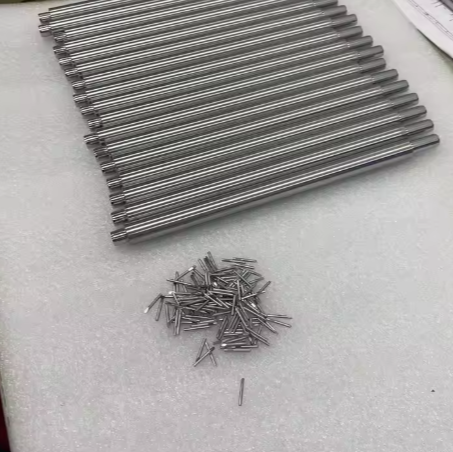

DIN1530d SKD61 Conical Head Ejector Pin for Household Appliance Moulds

The detail information of product

VINACNC - Expert in High-Precision Conical Head SKD61 Ejector Pins for Moulding

In the mould and injection moulding industry, the ejector pin is a core component that determines the precision and efficiency of the part ejection process. VINACNC is proud to supply conical head SKD61 ejector pins with high hardness and tight tolerances, manufactured to the international standard DIN1530d. This is the optimal solution, ensuring superior performance and durability even under harsh production conditions, especially for household appliance moulds.

Technical Specifications, Materials, and Applications

Material: The product is crafted from SKD61 tool steel, a high-quality steel widely used for its hardness, strength, and good heat resistance.
Standards:
- DIN1530d: The ejector pins are manufactured to the international standard DIN1530d, ensuring compatibility and high quality for seamless integration into existing moulds.
Technical Properties:
- Conical Head: The conical head design minimizes marks on the surface of the plastic product after ejection, while also providing a focused ejection force.
- Hardness: After heat treatment, the material achieves a stable hardness (typically HRC 48-54°), allowing the pin to withstand high pressure and friction during continuous operation.
- High Precision: Products are CNC machined with extremely tight diameter tolerances, ensuring a perfect fit with the mould.
Applications: Conical head SKD61 ejector pins are indispensable components in injection moulds for producing complex parts that require high durability, such as automotive components, electronic device housings, and household appliances.

Product Advantages

Superior Durability: With high-quality SKD61 material and advanced heat treatment processes, the ejector pin can withstand repetitive force and pressure, significantly extending the mould's lifespan.
Absolute Precision: Dimensions are strictly controlled down to the micrometre level, ensuring the components operate in perfect conjunction, minimizing the risk of product defects.
Optimized Performance: The smooth operation helps to reduce the moulding cycle time and enhances overall production efficiency, ideal for both rapid prototyping and mass production.
International Standard Compatibility: Compliance with international standards ensures high compatibility and quality, making it easier for clients to integrate our components into their existing systems.

Post-Machining Product Inspection Process

Hardness Test: We use a professional hardness tester to verify the hardness of the heat-treated material, ensuring it meets technical specifications.
Dimensional and Tolerance Check: We use a Coordinate Measuring Machine (CMM) or other high-precision measuring instruments to verify all critical dimensions and tolerances against the technical drawings.
Surface Inspection: We use a surface roughness tester and visual inspection to ensure there are no cracks, scratches, or other defects.
Functional Test: The components are test-fitted with related parts to ensure a perfect fit and smooth operation.

Packaging and Storage Process

Cleaning and Rust Prevention: The pins are cleaned and coated with a specialized anti-rust oil to protect their precision surfaces.
Secure Packaging: Products are carefully packed in rigid plastic boxes or cardboard crates with foam to prevent damage during transport.
Information Labeling: The packaging is clearly labeled with product information, including the product code, dimensions, and handling instructions.
Storage Instructions: We recommend storing the products in a dry, cool environment, away from high humidity and corrosive chemicals.
