Premium Hardened Steel Mold Return Pins Set | Smooth Operation for Injection Molds & Stamping Dies

The detail information of product

VINACNC - Expert in High-Precision Hardened Steel Mold Return Pins

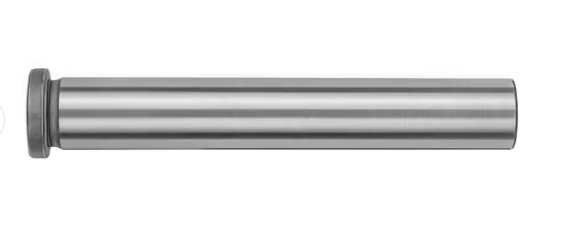

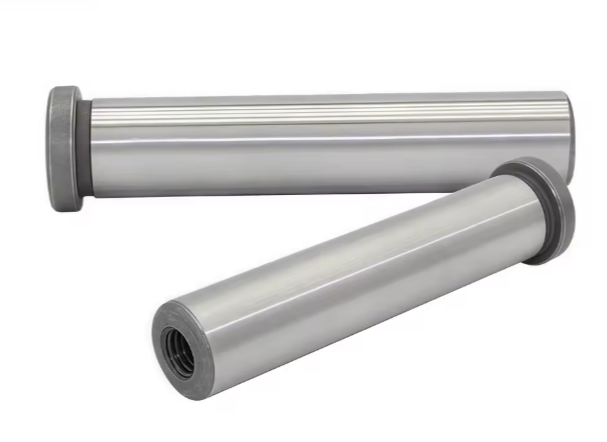

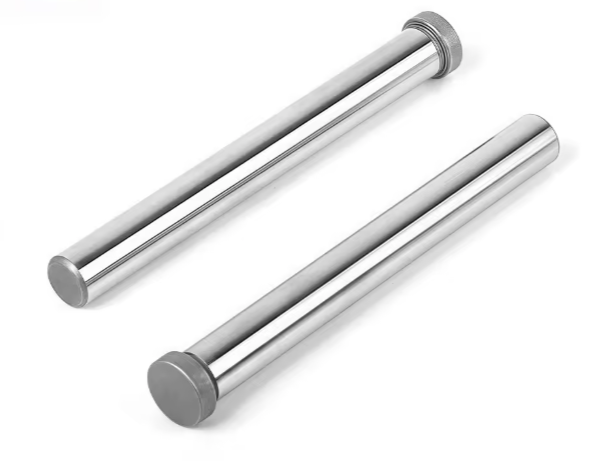

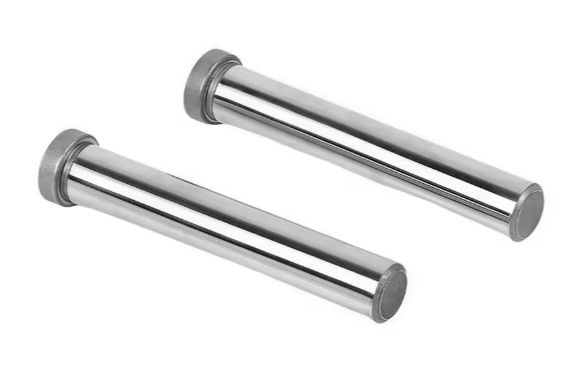

In the mould industry, mold return pins are a core component that determines the accuracy and efficiency of the mold closing process. VINACNC is proud to supply a premium mold return pins set with a high carbon steel construction, ensuring superior performance and durability even under the most demanding conditions of injection molding and stamping dies.

Technical Specifications, Materials, and Applications

Material: The products are crafted from high-quality high carbon steel, typically tool steels such as S45C, SKD61. These materials are known for their high hardness and excellent wear resistance after heat treatment.
Technical Properties:
- Hardness: After heat treatment, the material achieves a stable hardness (typically above HRC 50°), allowing the return pins to withstand high pressure and friction during continuous operation.
- Precision: The products are precision CNC machined with extremely tight diameter tolerances, ensuring a perfect fit with the mold and a smooth closing process.
- Surface Finish: The surface is specially treated to achieve high smoothness, which reduces friction, ensures a seamless return process, and extends the lifespan of the pins.
Applications: Mold return pins are indispensable components in plastic injection molds and stamping die systems. Their primary function is to ensure that the ejector system has fully returned to its initial position before the mold closes, preventing collisions and damage.

Product Advantages

Superior Durability: With high-quality hardened carbon steel, the mold return pins resist repetitive compressive force and friction during production, extending the mould's lifespan.
Absolute Precision: Meticulous CNC machining ensures dimensions are strictly controlled down to the micrometre level, allowing the components to operate in perfect conjunction and minimizing the risk of mold damage.
Reliable Performance: The smooth operation of the return pins helps to reduce the molding cycle time and enhances overall production efficiency.
High Wear Resistance: The ultra-precise surface finish gives the components high wear resistance, allowing them to withstand millions of production cycles.

Post-Machining Product Inspection Process

Hardness Test: We use a professional hardness tester to verify the hardness of the heat-treated material, ensuring it meets technical specifications.
Dimensional and Tolerance Check: We use a Coordinate Measuring Machine (CMM) or other high-precision measuring instruments to check the diameter, length, and concentricity.
Surface Inspection: We use a surface roughness tester and visual inspection to ensure there are no cracks, scratches, or other defects.
Functionality Test: The return pins are test-fitted with related parts to ensure a perfect fit and smooth operation.

Packaging and Storage Process

Cleaning and Rust Prevention: The products are cleaned and coated with a specialized anti-rust oil to protect their precision surfaces.
Secure Packaging: Products are carefully packed in rigid plastic boxes or cardboard crates with foam to prevent damage during transport.
Information Labeling: The packaging is clearly labeled with the product code, weight, dimensions, and handling instructions.
Storage Instructions: We recommend storing the products in a dry, cool environment, away from high humidity and corrosive chemicals.
