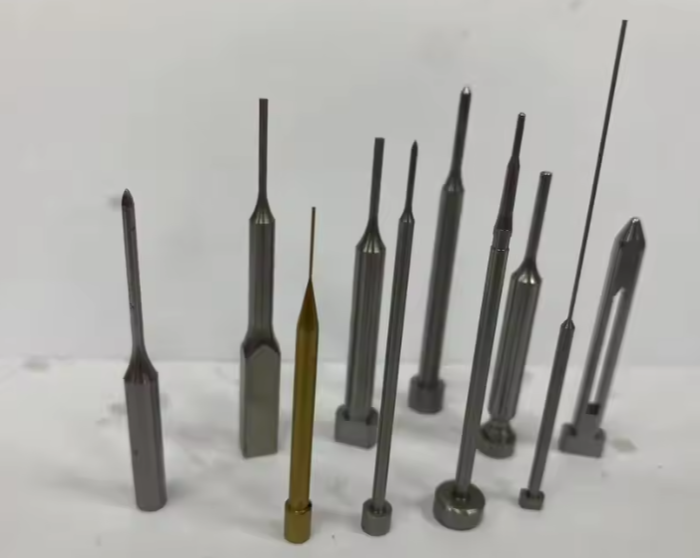

VINACNC - Expert in High-Precision Slug Ejector Punches and Punch Blanks

In the mould and stamping industry, slug ejector punches and punch blanks are core components that determine the precision and efficiency of the production process. VINACNC is proud to offer a manufacturing service for these high-precision components at competitive prices, ensuring superior performance and durability even under harsh production conditions.

Technical Specifications, Materials, and Applications

Materials: The products are crafted from high-quality tool steels such as SKD-11, M2, and HSS. These materials are known for their high hardness, wear resistance, and good toughness after heat treatment.
Technical Properties:
- Slug Ejector Punches: This type of punch has a special mechanism to automatically eject the metal or plastic slug after punching, which increases production speed and prevents slug jamming.
- Punch Blanks: These are punch blanks that have been heat-treated, surface-ground, or pre-machined, ready for final machining according to specific customer requirements.
- High Precision: Products are CNC machined to extremely tight tolerances, ensuring a perfect fit with the die and helping to create parts with precise dimensions.
Applications: Our components are indispensable parts of stamping dies for cutting and punching holes in sheet metal or plastic parts. They are widely used in the manufacturing of automotive parts, electronic device housings, and precision machinery.

Product Advantages

Superior Durability: With high-quality steel materials, the components resist repetitive force and pressure, significantly extending the mould's lifespan.
Absolute Precision: Dimensions are strictly controlled down to the micrometer level, ensuring the components operate in perfect conjunction, minimizing the risk of product defects.
Optimized Performance: The smooth operation of the slug ejector punches helps to reduce the stamping cycle time and enhances overall production efficiency.
Competitive Pricing: Thanks to our optimized and efficient production process, we can offer products at a very competitive price.

Post-Machining Product Inspection Process

Hardness Test: We use a professional hardness tester to verify the hardness of the heat-treated material.
Dimensional and Tolerance Check: We use a Coordinate Measuring Machine (CMM) to verify all critical dimensions and tolerances against the technical drawings.
Surface Inspection: We use a surface roughness tester and visual inspection to ensure there are no cracks, scratches, or other defects.
Functional Test: The components are test-fitted with related parts to ensure a perfect fit and smooth operation.

Packaging and Storage Process

Cleaning and Rust Prevention: The components are cleaned and coated with a specialized anti-rust oil to protect their precision surfaces.
Secure Packaging: Products are carefully packed in rigid plastic boxes or cardboard crates with foam to prevent damage during transport.
Information Labeling: The packaging is clearly labeled with product information, including the product code, dimensions, and handling instructions.
Storage Instructions: We recommend storing the products in a dry, cool environment, away from high humidity and corrosive chemicals.
